Product Features:

● Super cost performance

● Built-in measurement processor

● Have the same feedback loop ashigh-end products.

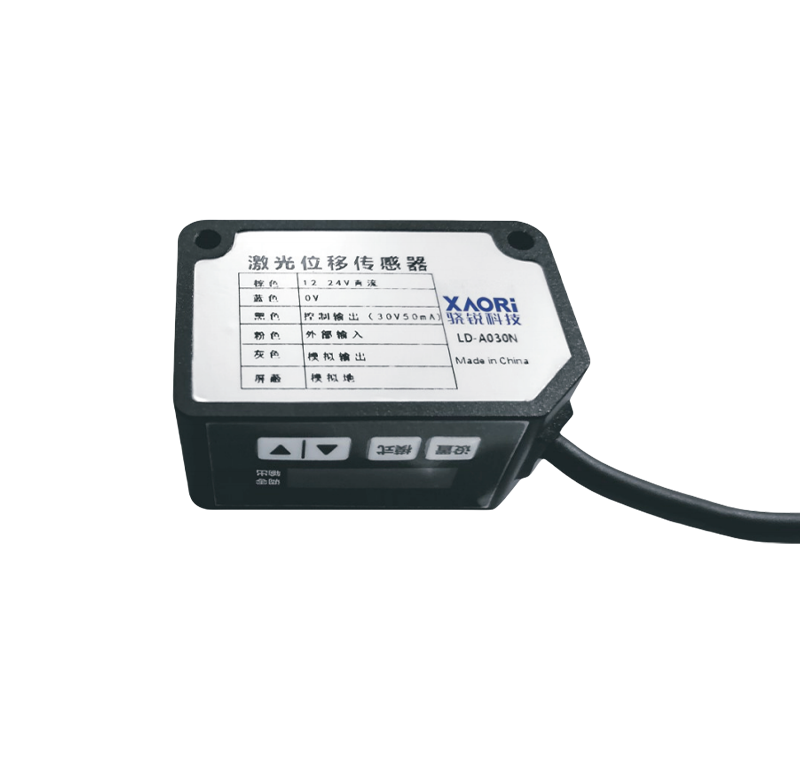

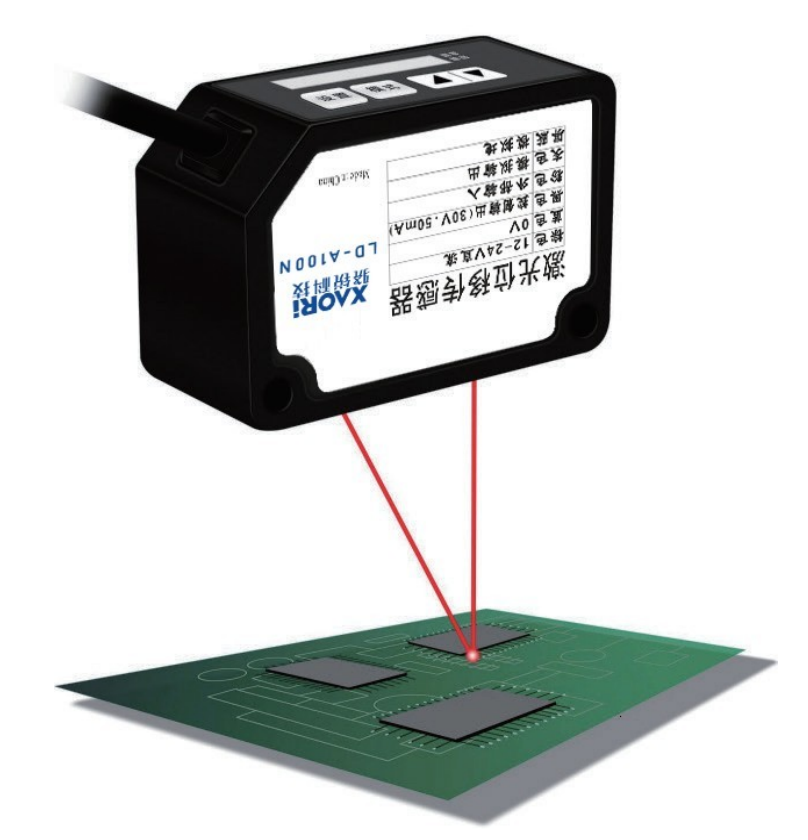

LD - A Series Laser displacement sensors

The LD - A series laser Displacement Sensors by XAORI Technology are high - quality devices that combine functionality with user - friendly features.

Product Features

Cost - Effective: These sensors offer excellent cost - performance ratios, providing high - end performance at a more accessible price point.

Attractive Indicator: A large output indicator light on the top not only enhances visibility but also gives the sensor an aesthetically pleasing appearance.

Advanced Feedback Circuit: Equipped with a feedback circuit similar to that of high - end products, ensuring accurate and stable measurements.

Display and Control

The sensors feature an intuitive display and control section. There are keys for setting basic values, measurement functions, and adjusting output. Users can easily switch between different measurement modes and fine - tune settings, with the display showing measurements in millimeters for clear and straightforward readings.

Installation Flexibility

They offer flexible installation directions. When measuring moving objects, proper orientation can minimize errors caused by material and color differences. For rotating objects, specific installation directions help reduce vibrations and position deviations. In situations like slot and hole measurements, careful installation avoids blocking the light - receiving part. Mounting against walls requires attention to reflection for optimal performance.

Technical Specifications

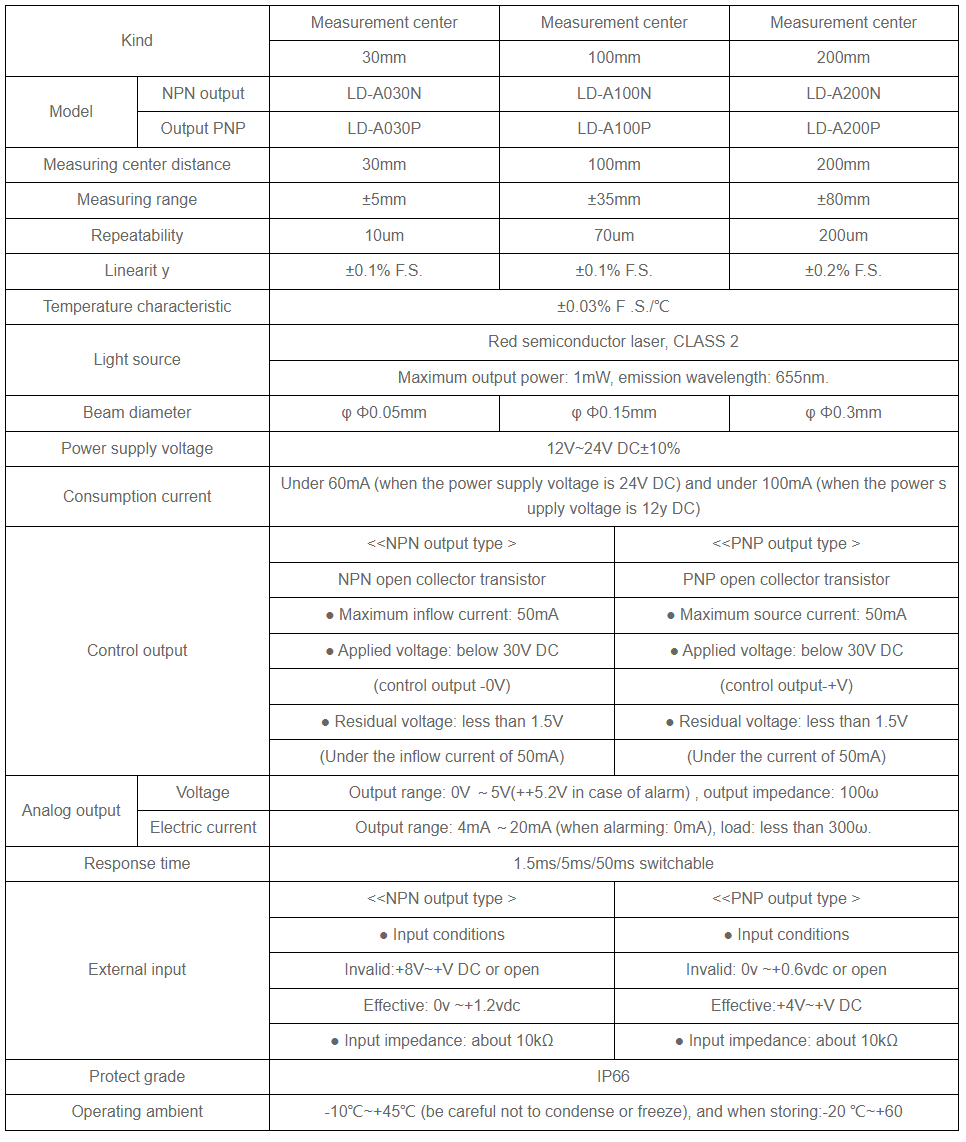

Available in different measurement center models (30mm, 100mm, 200mm). They have a detection accuracy ranging from ± 5mm to ± 80mm, high linearity, and stable temperature characteristics. With power supply requirements of 12 - 24V DC ± 10%, and protection grades of IP66, they are suitable for various industrial environments. The sensors also offer NPN and PNP output options, along with analog output for versatile connectivity.

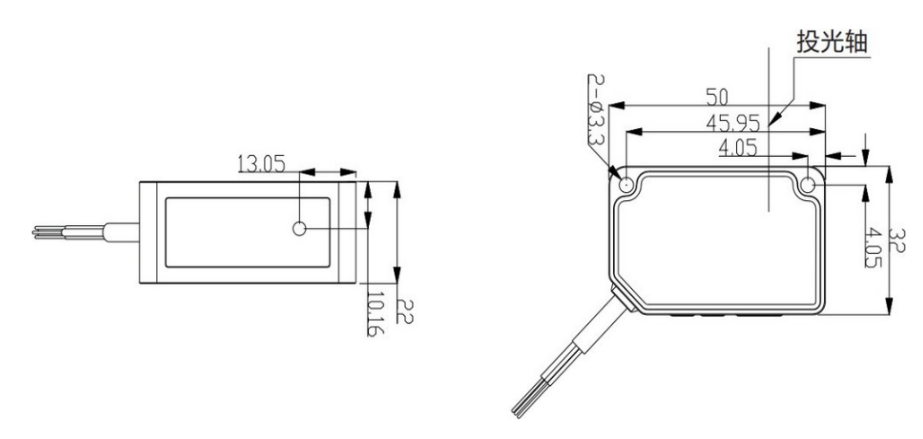

Value unit: mm

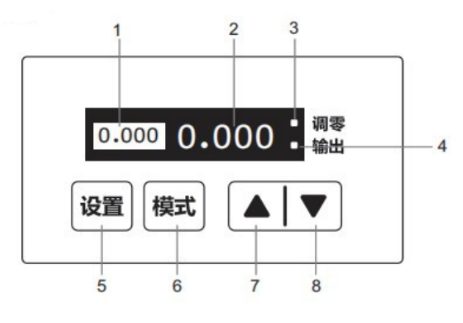

1. Benchmark value

2. Measurements

3. Zero indicator light

4. Output indicator

5. "Settings" key

6. "Mode" key

7. "Up" key

8. "Down" key

Orientation relative to moving body

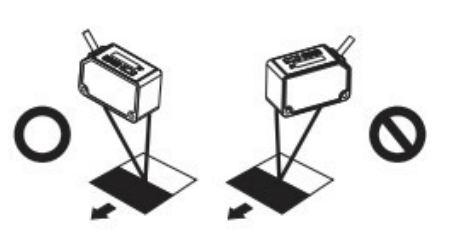

<In the case of material and color difference>

When measuring, if the material or color of the moving object to be measured is extremely different, install it in the direction shown in the figure on the right, so that the measurement error can be minimized.

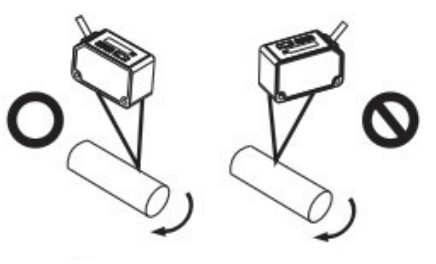

<Measurement of a rotating object>

・When measuring a rotating object, install it in the direction shown in the figure on the right, so that the influence of vertical vibration and positional displacement of the object can be suppressed.

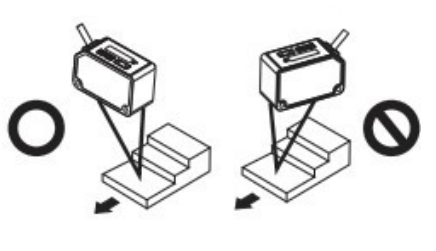

<When there is a step difference>

・When there is a level difference in the moving object to be measured, install it as shown in the figure on the right, so that the influence of the level difference edge can be suppressed.

● Measurement in narrow places and depressions

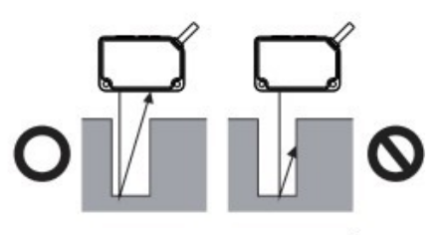

When measuring in a narrow place or in a hole, be careful not to block the light path from the emitter to the receiver during installation.

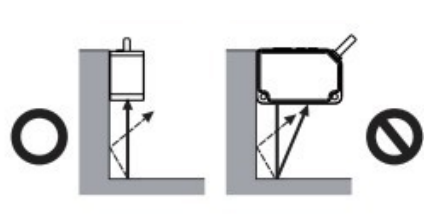

● When the sensor unit is mounted on the wall

Please follow the method shown on the right to install, so that the multiple reflection light generated by the wall will not enter the light-receiving part. In addition, when the reflectivity of the wall surface is high, good results can be obtained by changing to matt black.
