G4-A100/300(N/P/NP), G4-A100E/300E(N/P/NP)

Product Features

① All settings are made by keypad.

② Infrared light source or red light source is used.

③ Detection is not affected by the surface condition of the colour angle.

④ Suitable for detecting objects with very small background spacing.

⑤ ABS plastic case.

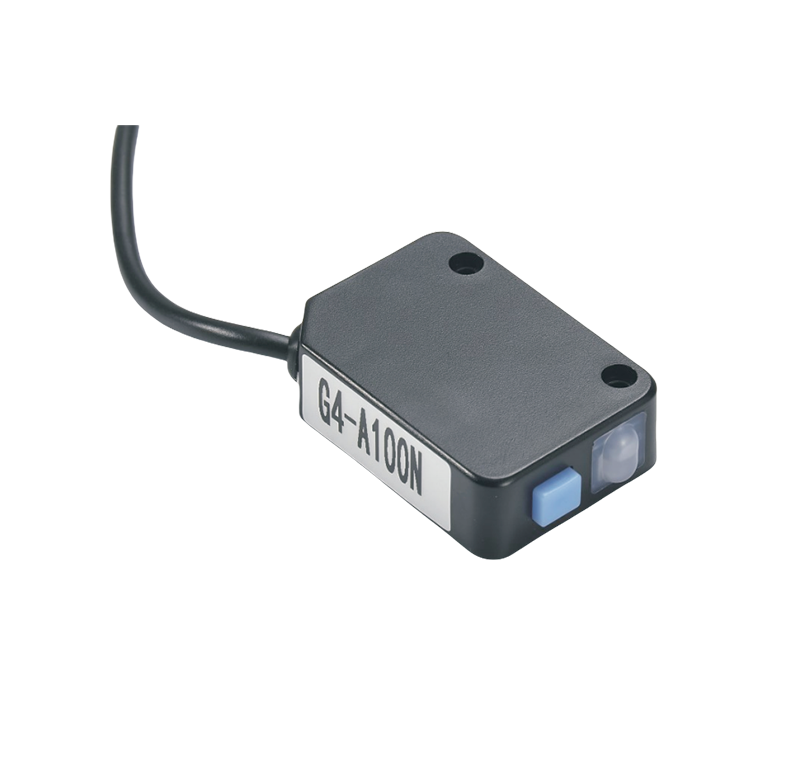

G4 Series Automatic Differential Photoelectric Sensor

The G4 series Automatic differential photoelectric sensors, developed by XAORI Technology, are sophisticated sensing solutions designed to meet a wide array of industrial and commercial detection needs.

Outstanding Features

Versatile Sensing Modes: Employing either an infrared or red light source, these sensors offer flexibility in diverse detection scenarios. The choice of light source can be tailored based on specific object characteristics and environmental conditions, ensuring optimal performance.

Immunity to External Factors: One of the most remarkable aspects is their ability to detect objects without being affected by the color, angle, or surface condition of the target. This feature guarantees consistent and reliable detection results, eliminating potential inaccuracies caused by these variables.

User - friendly Operation: With all - key settings, users can easily configure and adjust the sensors according to their specific requirements. Whether it's sensitivity adjustment or mode selection, the intuitive key - based operation simplifies the process.

Robust Build: Housed in an ABS plastic shell, the sensors are durable and can withstand harsh industrial environments, providing long - lasting performance.

G4-A100N/300/N(NP)

It is suitable for applications where the distance between the background and the detected object is extremely small. It can be completely unaffected by any fixed background and is not affected by the color of the detected object.

G4-A100EN/300/EN(ENP)

The sensor light spot is visible and easy to align. It is suitable for applications where the distance between the background and the object being detected is extremely small. It can be completely unaffected by any fixed background and is less affected by color changes of the object being detected.

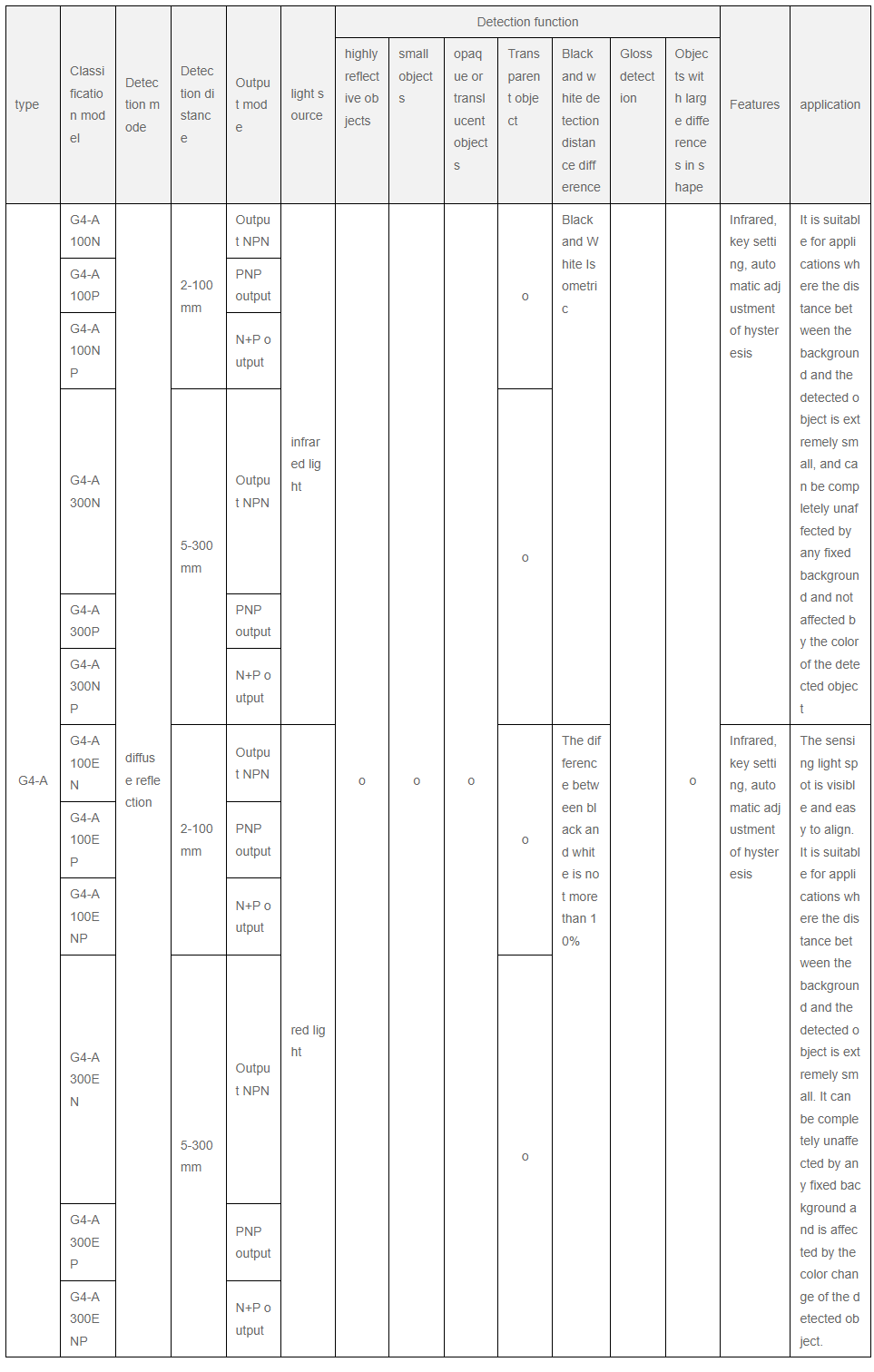

Selection table of G4-A automatic differential Photoelectric Sensor: G4-A100/300(N/P/NP), G4100E/300E(N/P/NP)

Features:

1. All keys are used for setting;

2.Adopt infrared light source or red light source;

3. The detection is not affected by the surface condition of color angle;

4. Plastic case.
