Characteristics

1. double output of switching and analogue at the same time; 2.

2. Large output indicator on the top, more beautiful.

3. short, medium, long three kinds of detection distance can be selected.

4. White digital tube display distance value, clear and bright; 5.

5. Membrane button, easy to operate; 6.

6. aluminium alloy shell, durable.

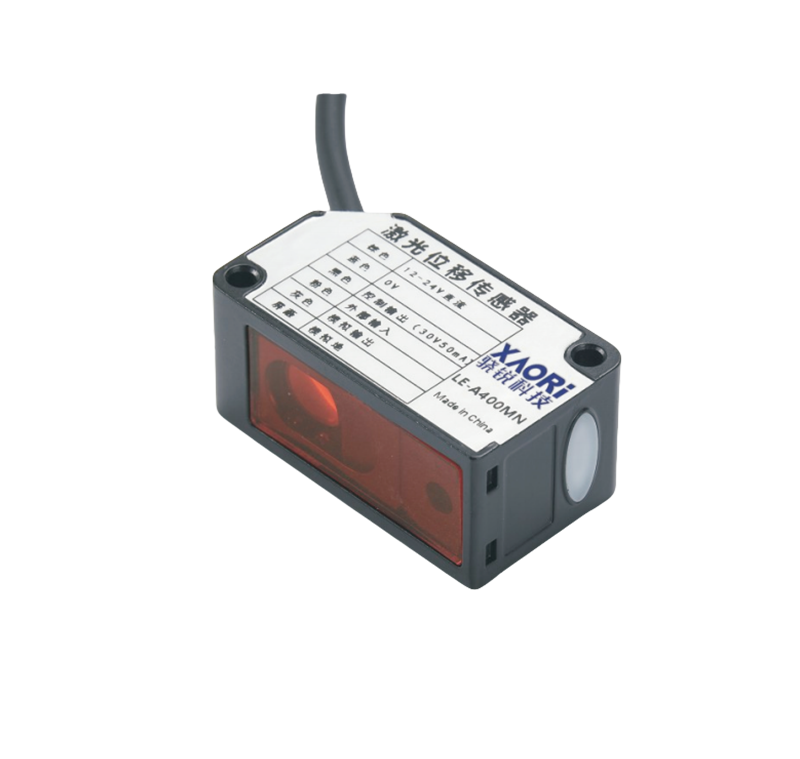

LE - A Series Laser displacement sensors

The LE - A series laser Displacement Sensors by XAORI Technology are advanced sensing devices with a range of useful features.

Product Features

Dual - Mode Setting: They can be set via buttons or through a computer RS485 interface, providing users with flexible configuration options.

High - Visibility Indicator: The sensor is equipped with an extra - large output indicator light, which is highly visible and convenient for monitoring the sensor's working status.

Selectable Detection Ranges: There are short, medium, and long detection ranges available, allowing users to choose the most suitable model according to specific application requirements.

Clear Display: The white backlit digital display is clear and easy to read, enabling users to quickly obtain measurement data.

User - friendly Operation: With simple key operations, users can easily adjust and configure the sensor.

Robust Build: Housed in an aluminum alloy shell, the sensor is sturdy and durable, suitable for various industrial environments.

Product Categories

The series offers a variety of models with different measurement ranges, such as 30 ± 5mm, 50 ± 15mm, 100 ± 15mm, etc.  Each model is designed to meet specific precision measurement needs in different applications.

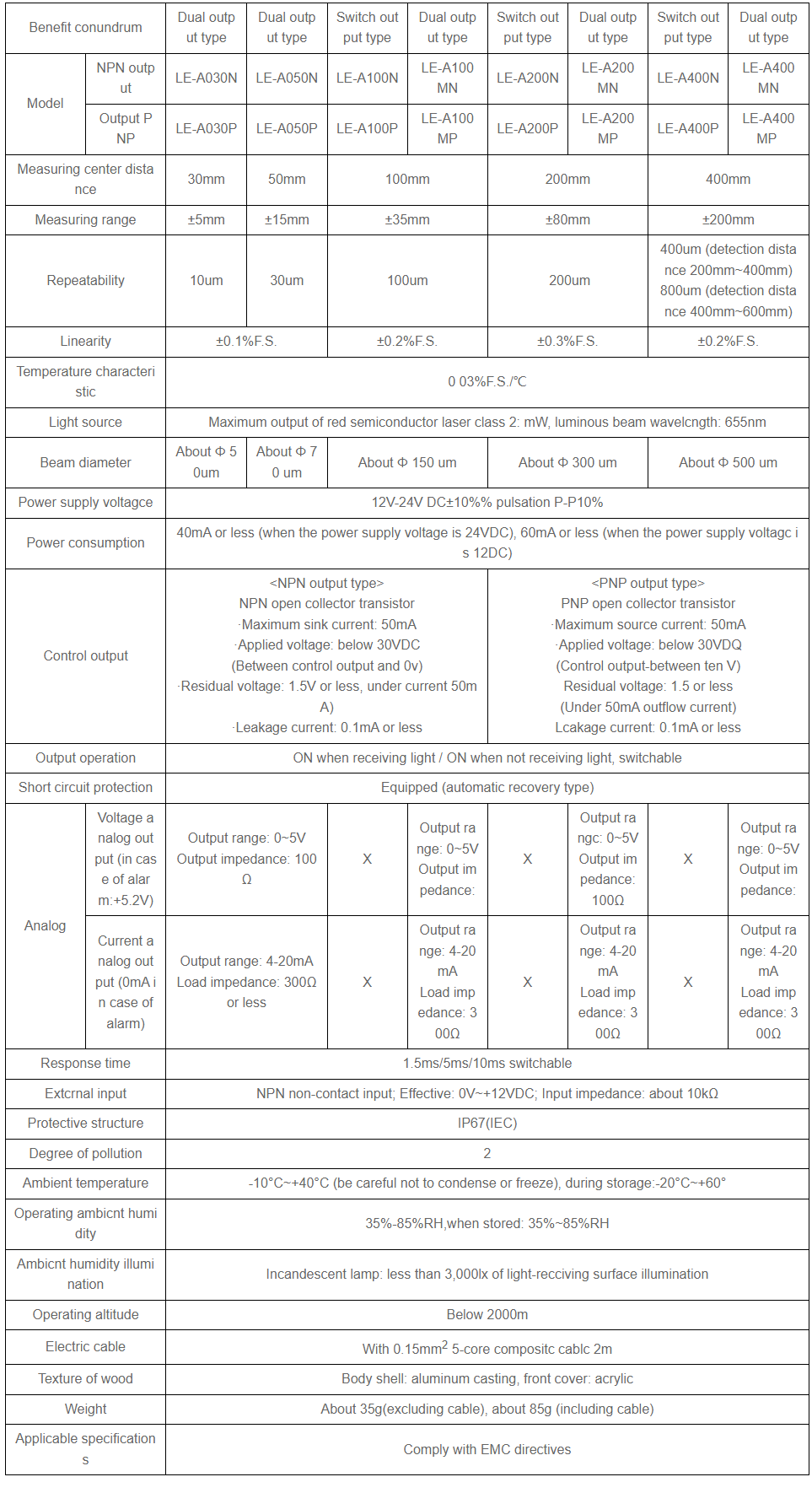

Technical Specifications

Power Supply: Operates on 12 - 24VDC ± 10%.

Output Options: Available in NPN and PNP output types, with additional analog output options in some models.

Response Frequency: Varies by model, with values such as 1.5kHz, 2.5kHz, etc.

Accuracy: Precision can reach up to ± 0.05% of the full - scale value in certain models.

Protection: Equipped with reverse connection protection and over - current protection to ensure stable operation.

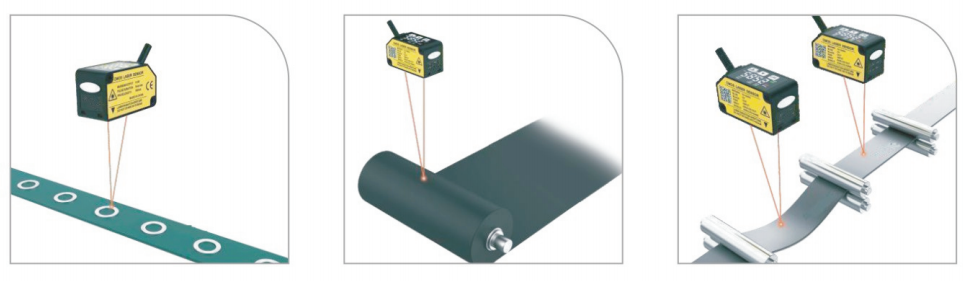

These sensors are suitable for applications like detecting the flatness of objects, measuring the remaining amount of materials, and monitoring the dynamic thickness of materials, making them valuable in industrial measurement and quality control.
