Functional features

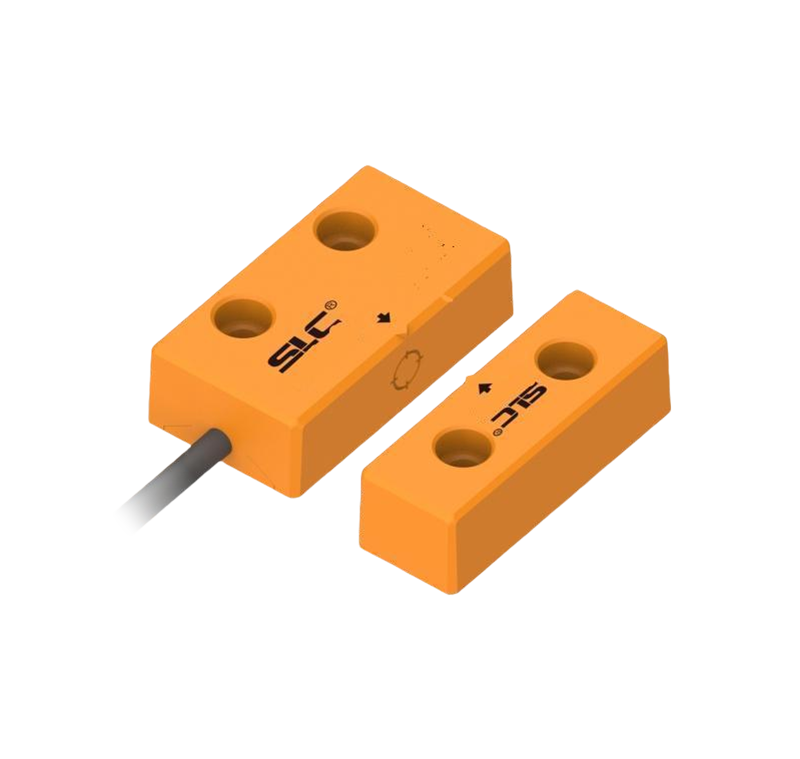

The design of TMC3 magnetic code safety switch combines multiple magnetic sensitive elements, these magnetic sensitive elements parts must be triggered in a specific order to work normally, non-contact execution, and has a high misalignment tolerance, detection range is large, easy to install, can be multiple series, TMC3A2C/TMC3B2C can be used with SCDA127R security module up to level 4 safety level, through the CE certification, in line with ISO 13849-1 SIL3 PLe. Category 4.

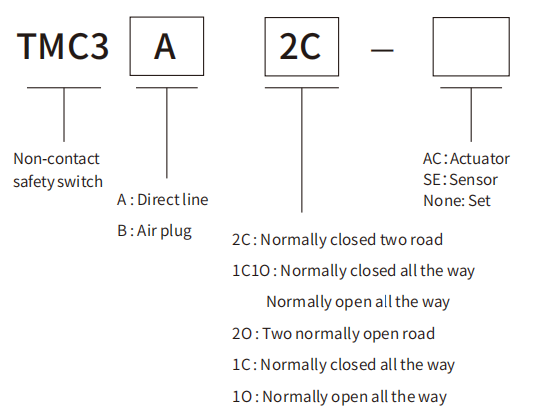

Model description

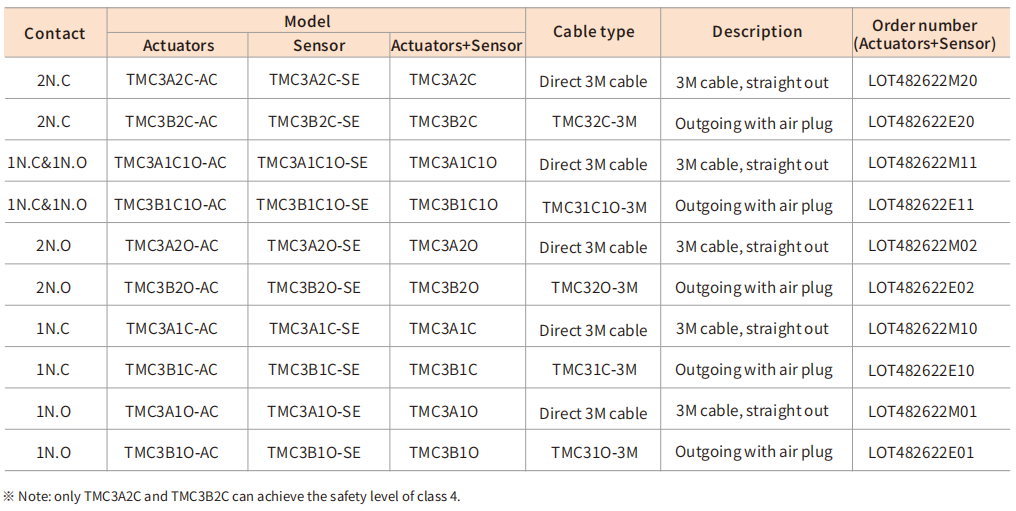

Selection table

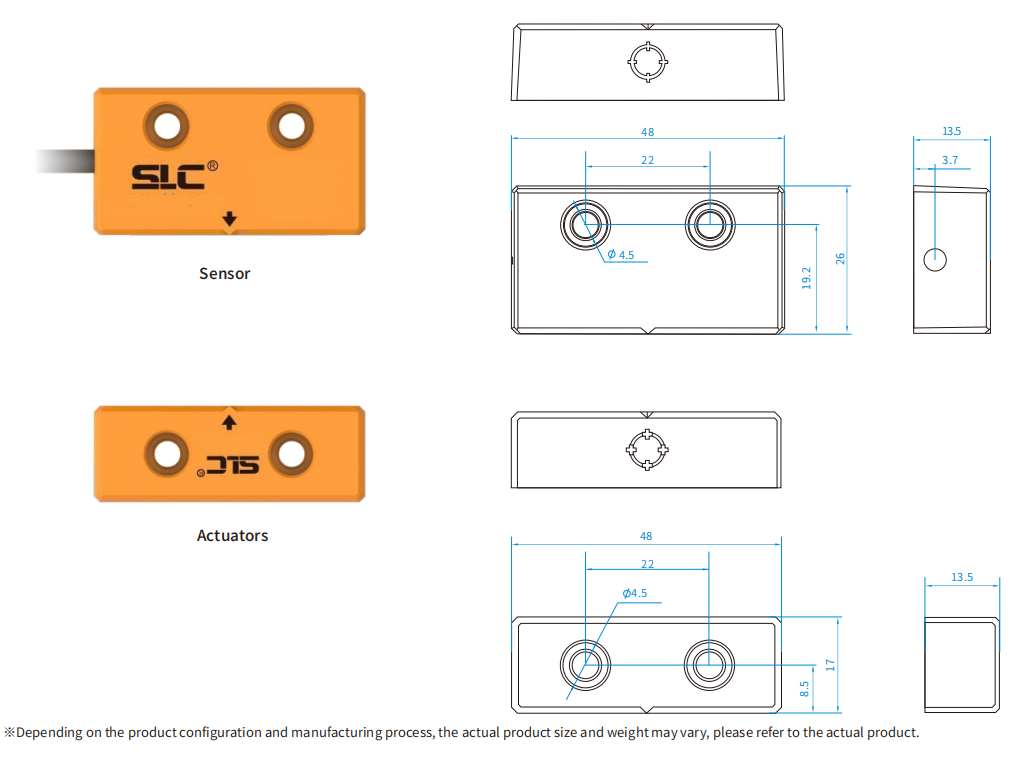

Installation dimensions

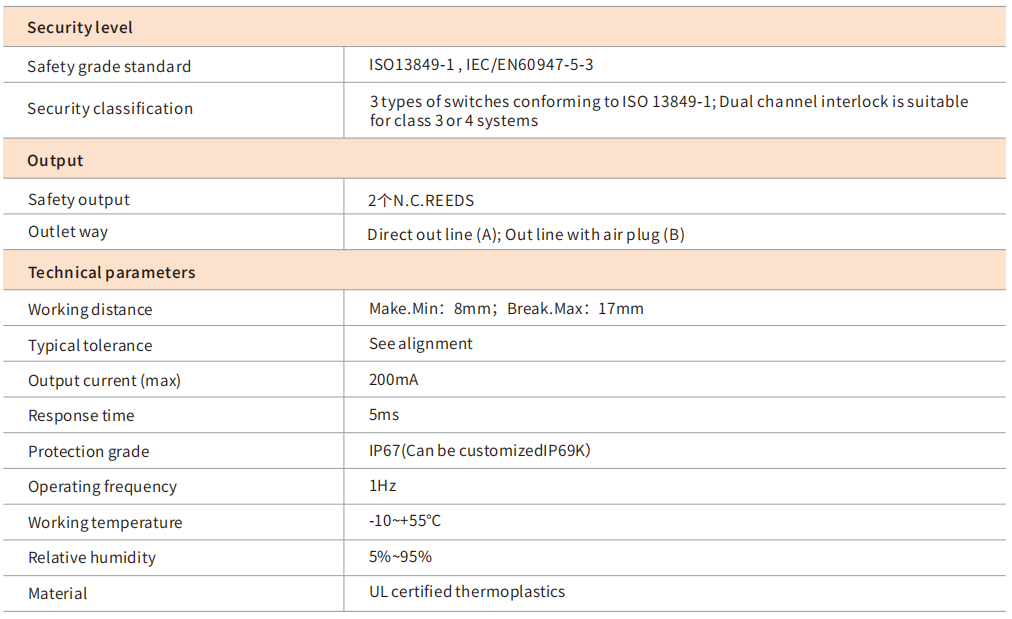

Technical parameters

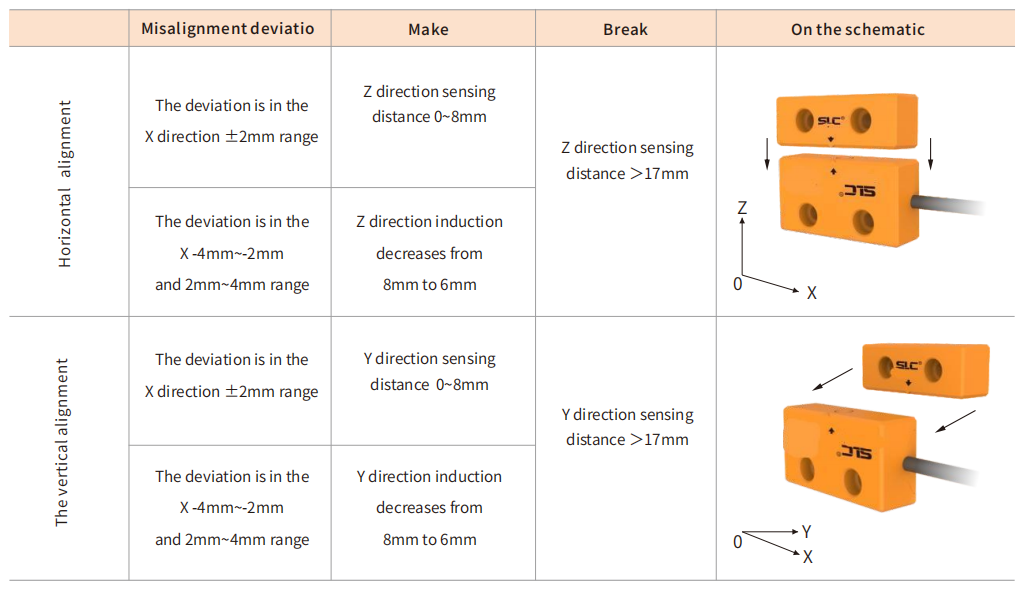

Alignment diagram

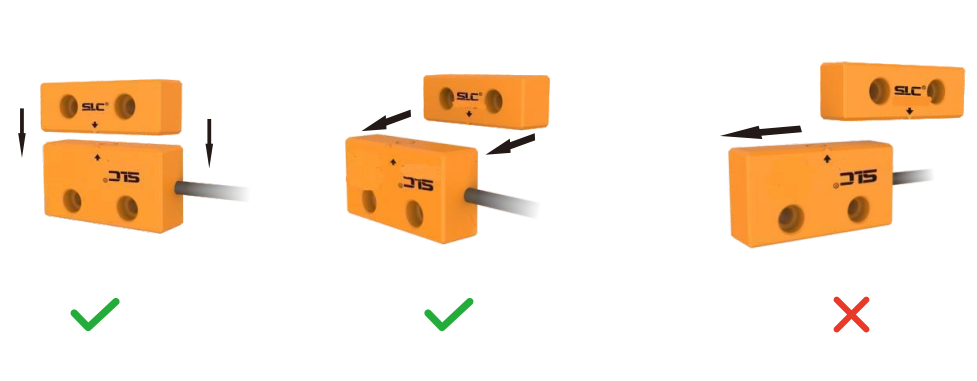

Approach direction

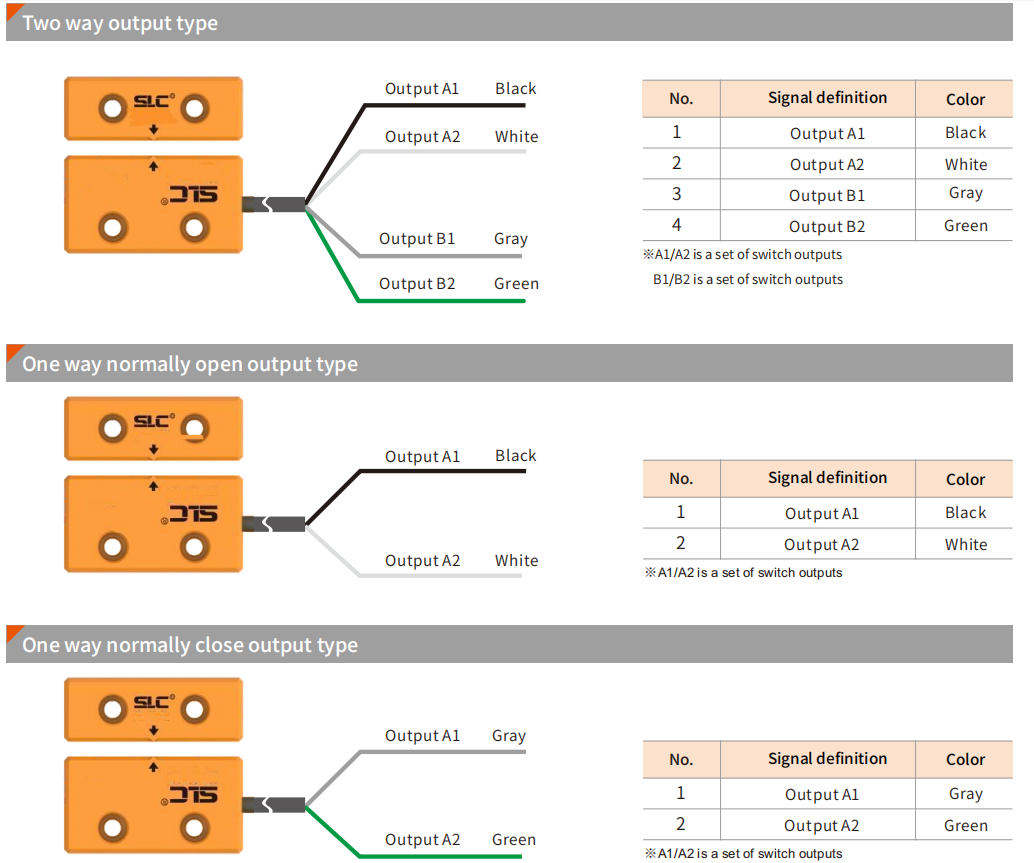

Safety switch wiring defintion

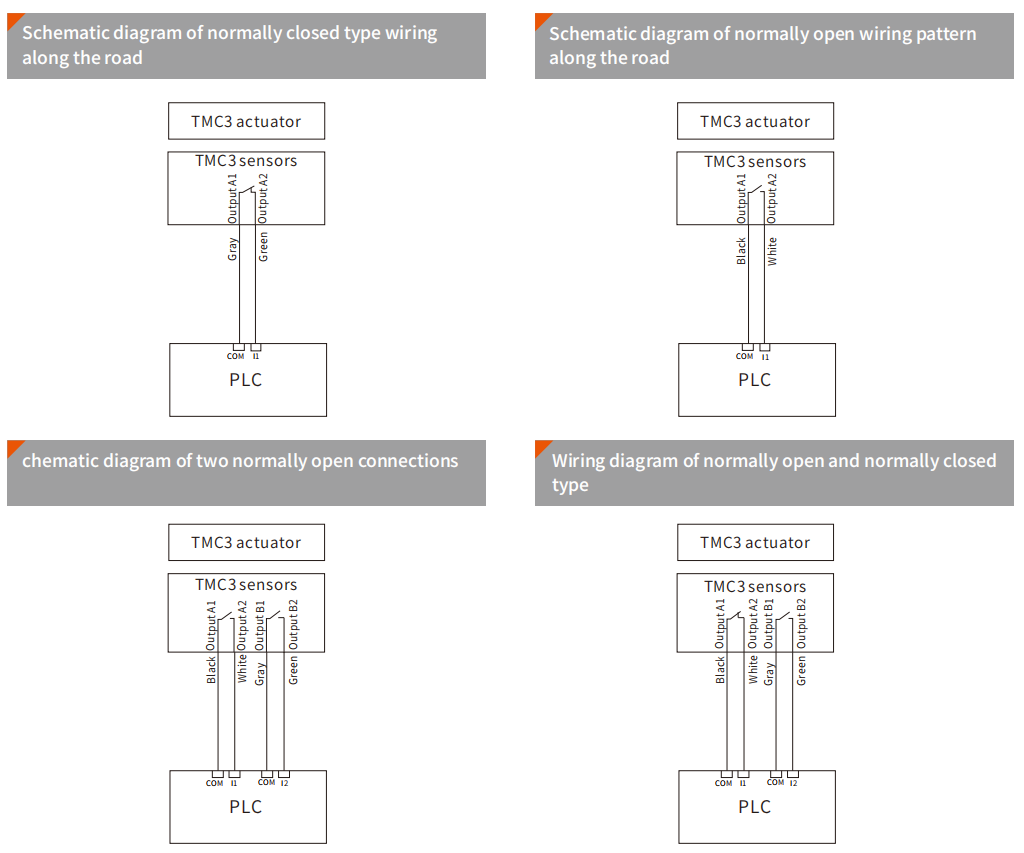

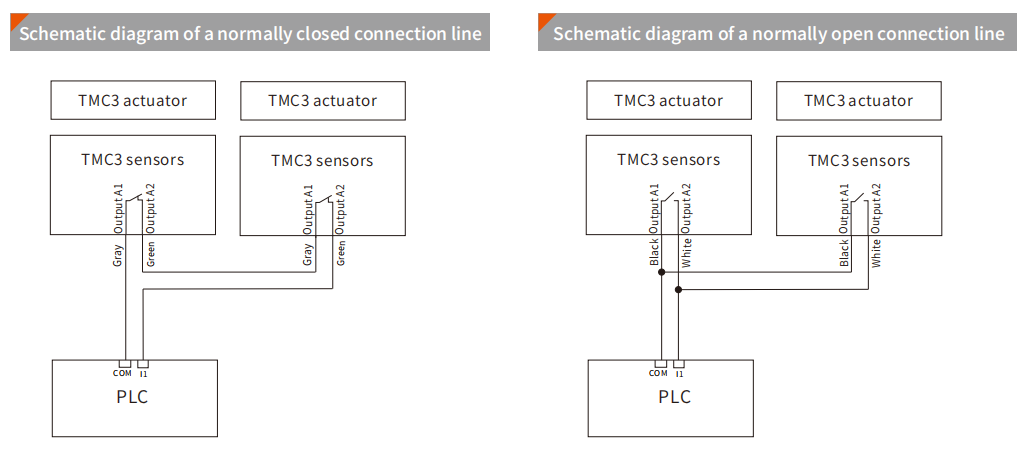

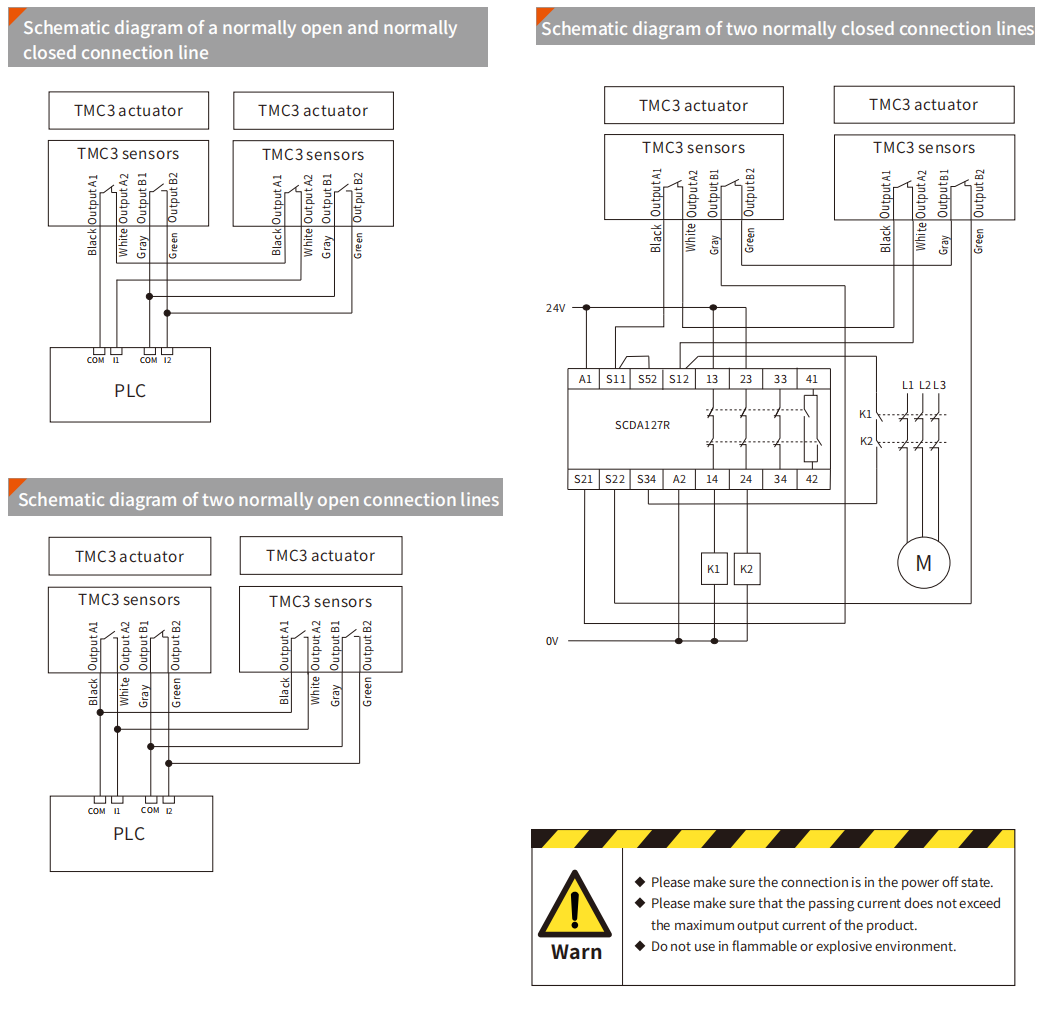

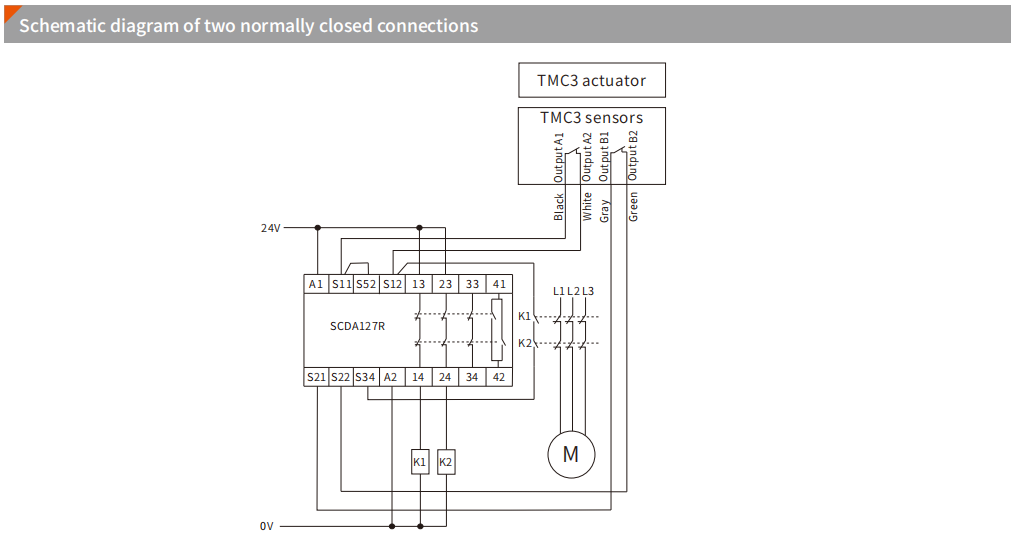

Application wiring example
