Features

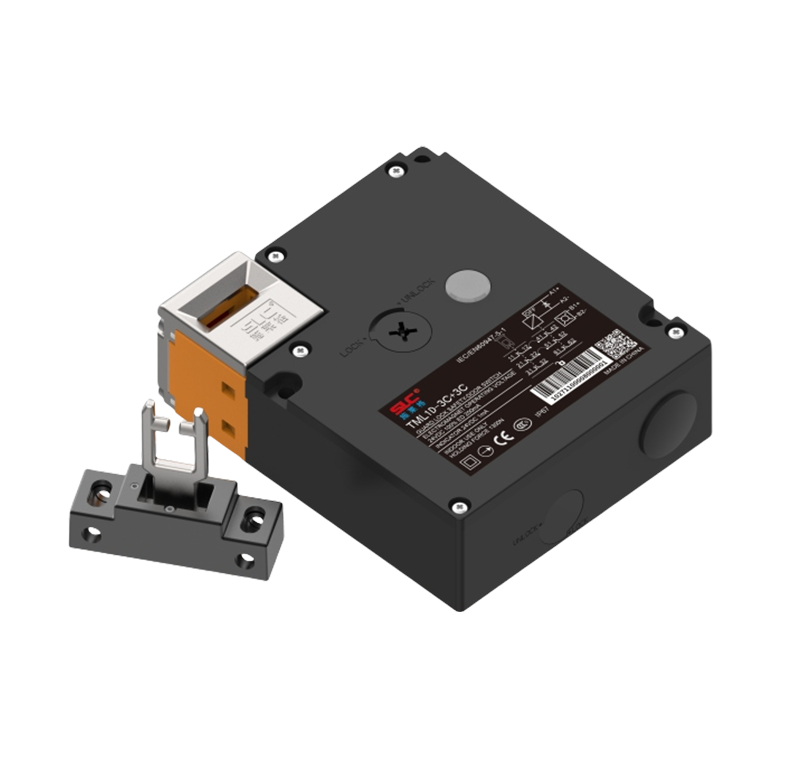

TML series security door locks are the most commonly used door interlocking technology.  They  use  a  key  mounted  at  the  opening  of  the  switch  body  to detect the movement of the protective door. Due to their small and lightweight form  factor,  variety  of  contact  configurations,  and  locking  function,  safety latches  are  often  the  lowest  cost  solution.  Moreover,  thanks  to  the  use  of flexible keys, their misalignment tolerances are increased, so they can be used in a wide range of applications.

TML series security door locks allow the switch head to press 90. The angle is rotated 4 times, the key can be inserted into the switch in different positions, and  the  electromagnet  can  choose  to  work  on  and  off  the  power,  which provides  a  variety  of  different  options for the way the  switch works  and the installation method on the protective door. This increases the flexibility of the switch and makes it ideal for use on a wide range of doors.

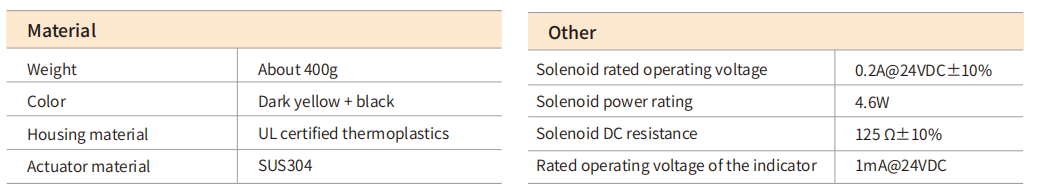

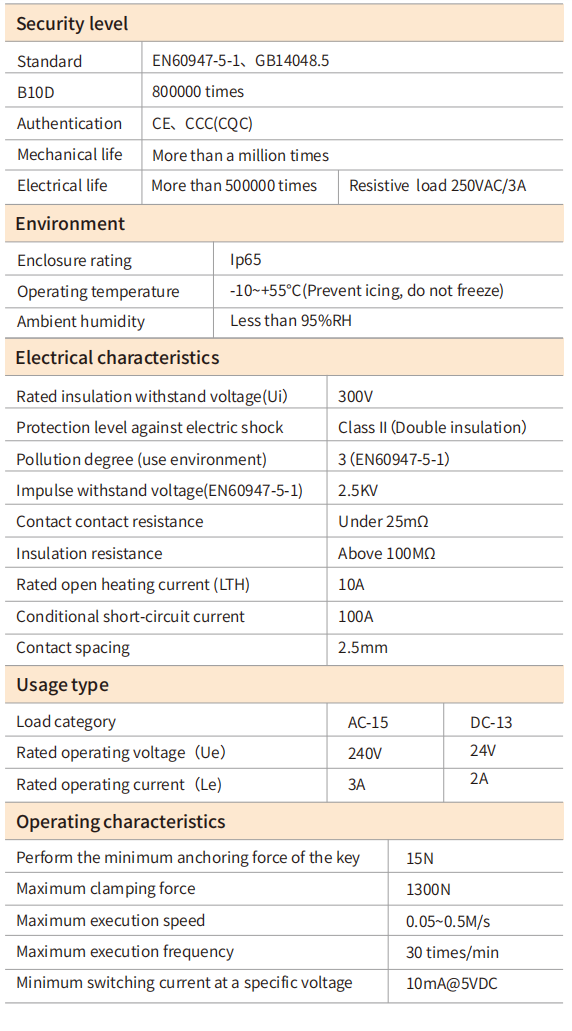

Technical parameters

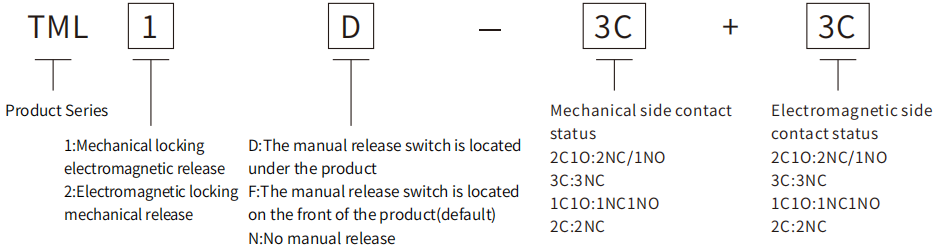

Model description

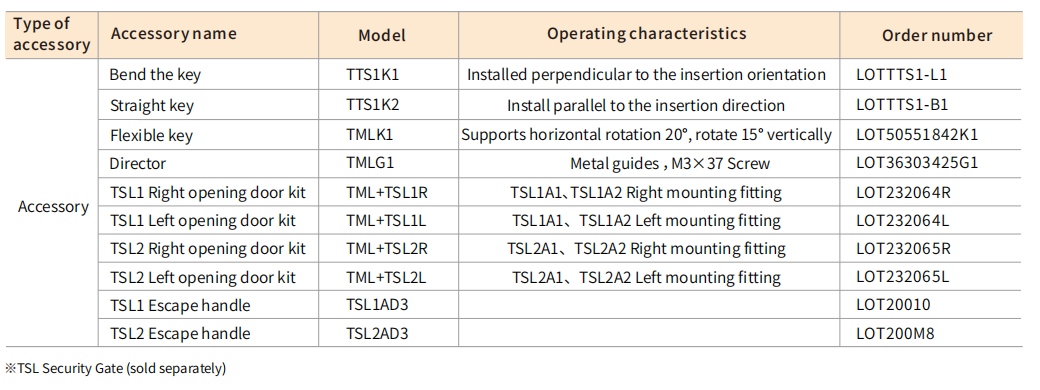

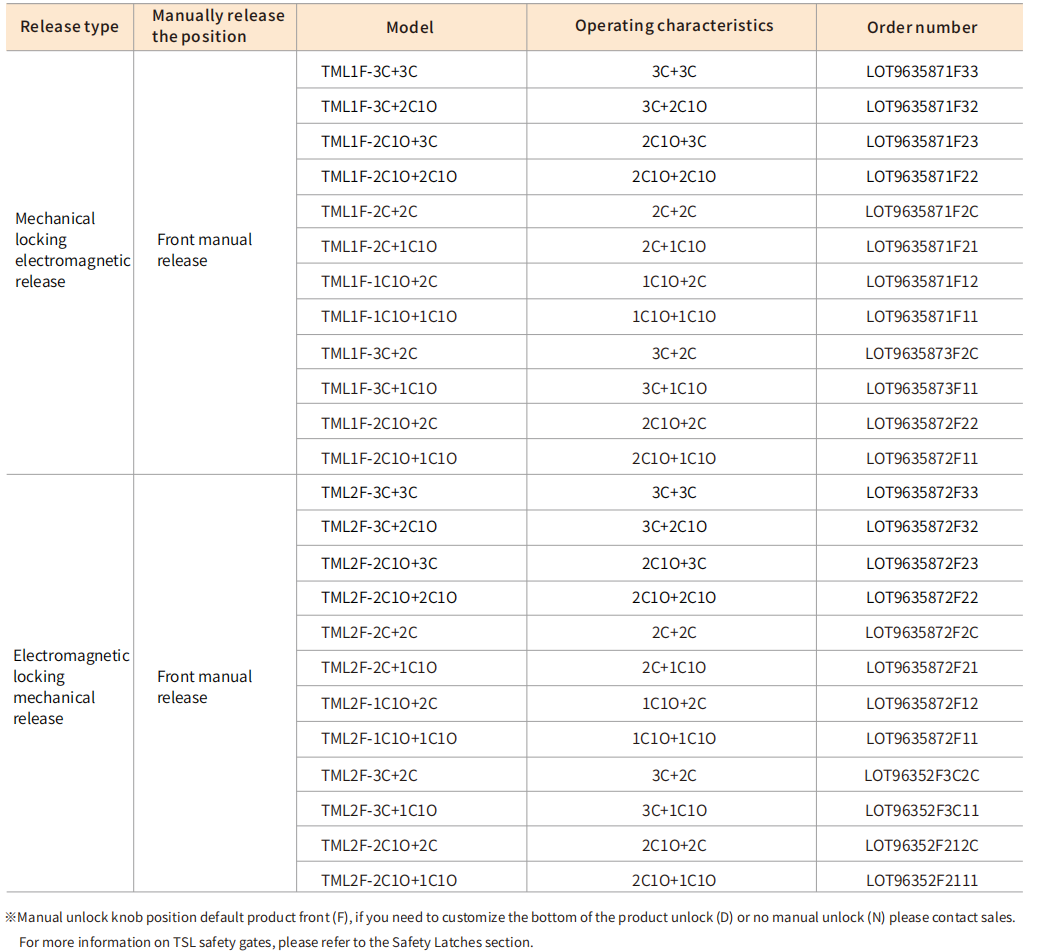

Selection guide

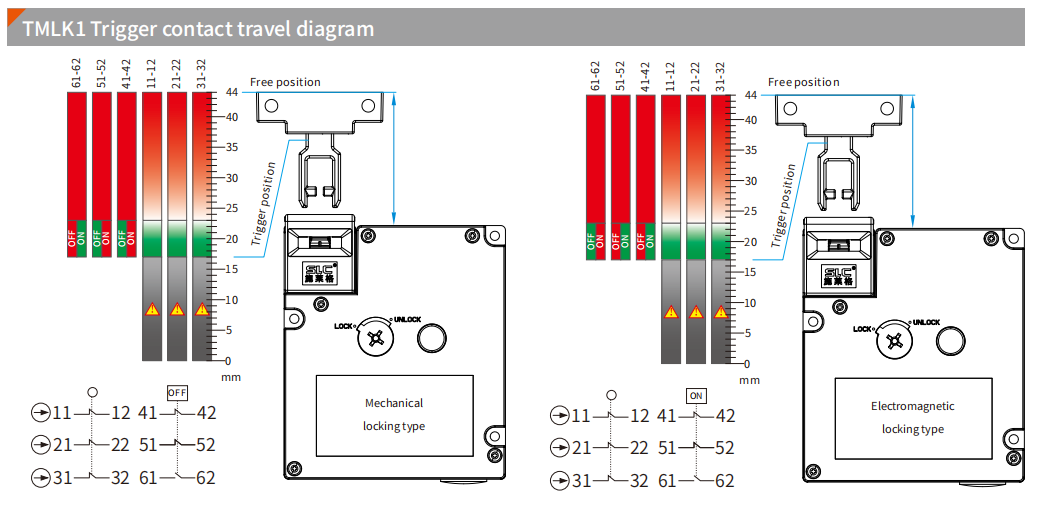

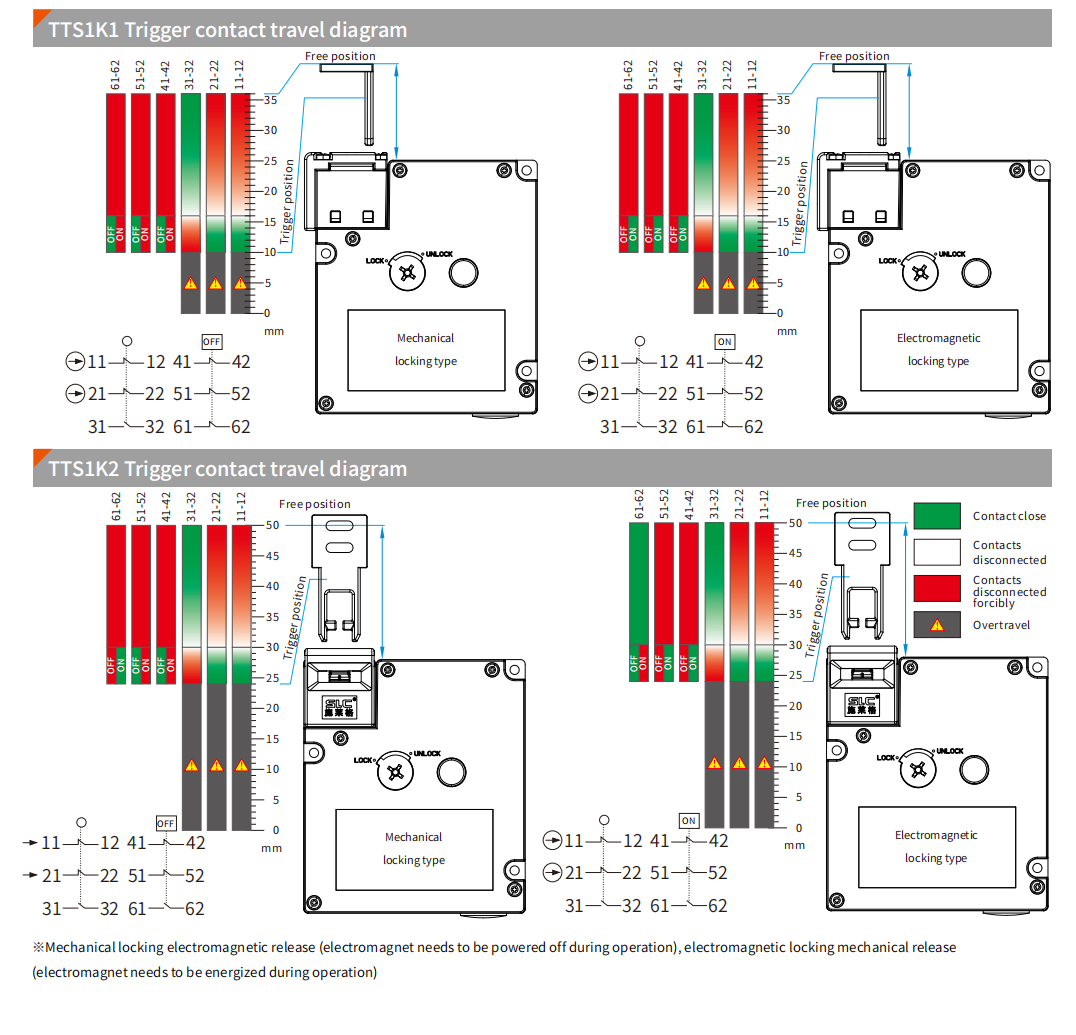

Contact state switching stroke diagram

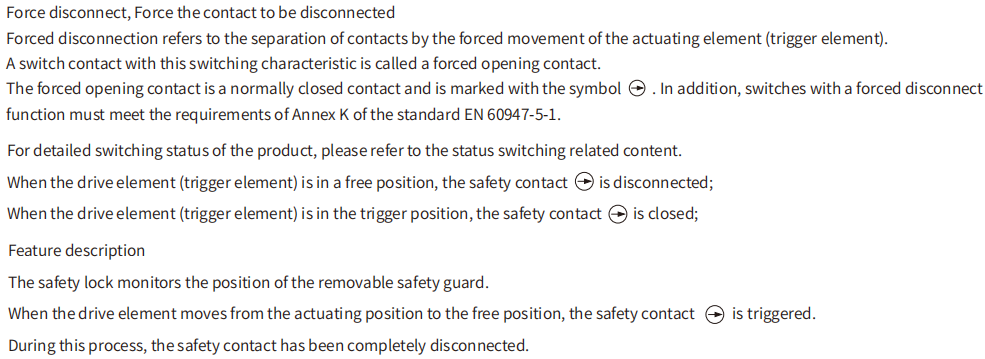

Contact state closure and disconnection relationship

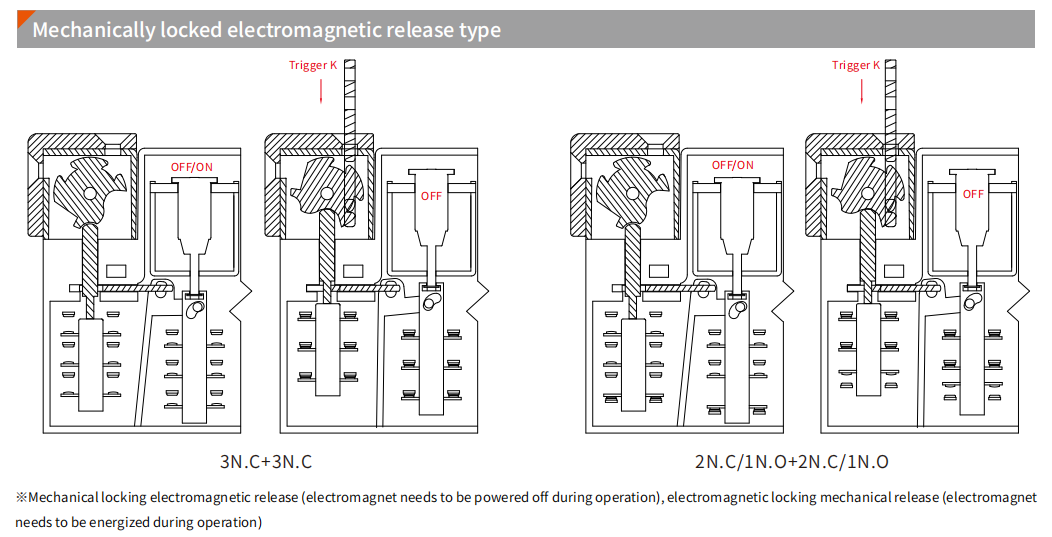

※Mechanical locking electromagnetic release (electromagnet needs to be powered off during operation), electromagnetic locking mechanical release (electromagnet needs to be energized during operation)

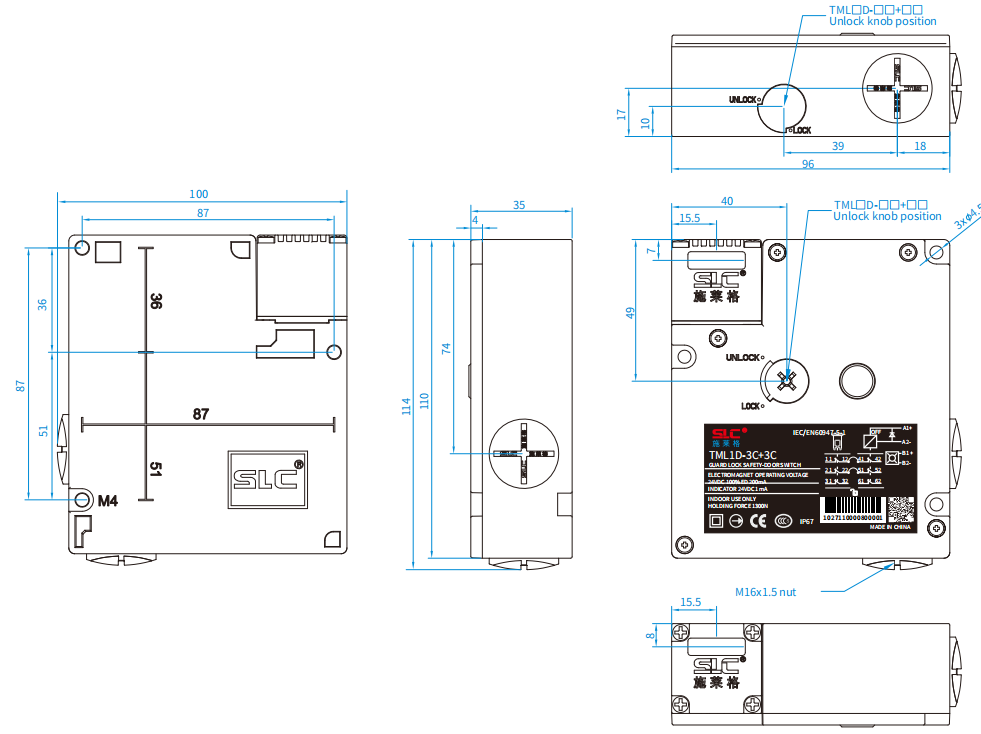

Body shape and installation size（mm）

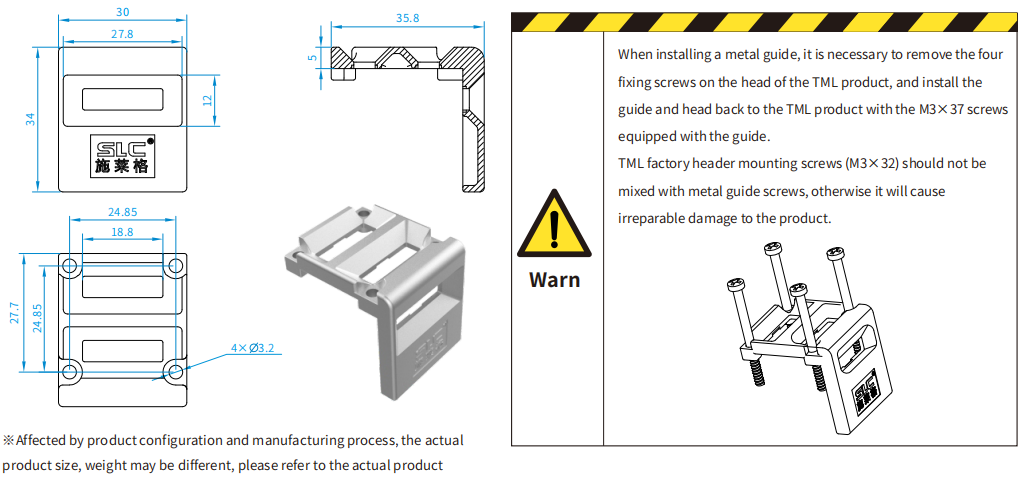

Director size（TMLG1)
