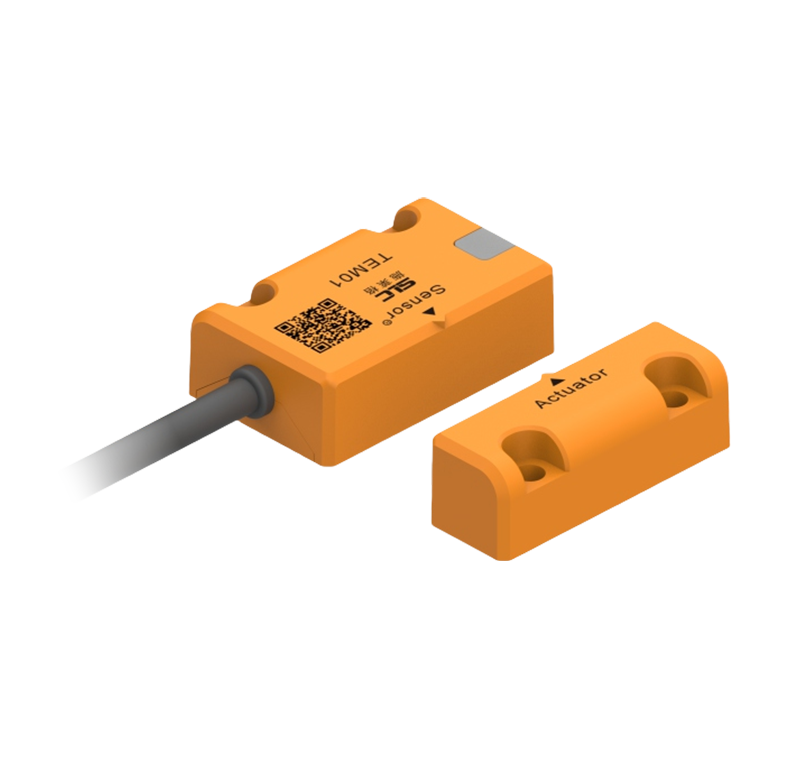

TEM01 series safety switch features

TEM01 series RFID safety switch based on RFID technology safety switch compared with mechanical switch or magnetic switch, has the characteristics of detection confidentiality (can provide unique code), strong anti-interference, safety and reliability. The use of safety dual- channel output technology can reach the safety level PLe, which can effectively prevent false alarms or false alarms, or abnormal triggers. Can be used with safety latches.

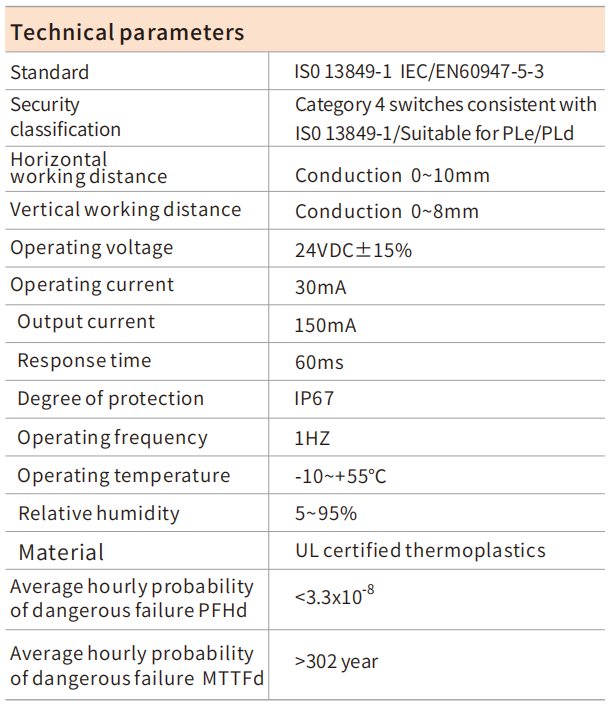

Technical parameters

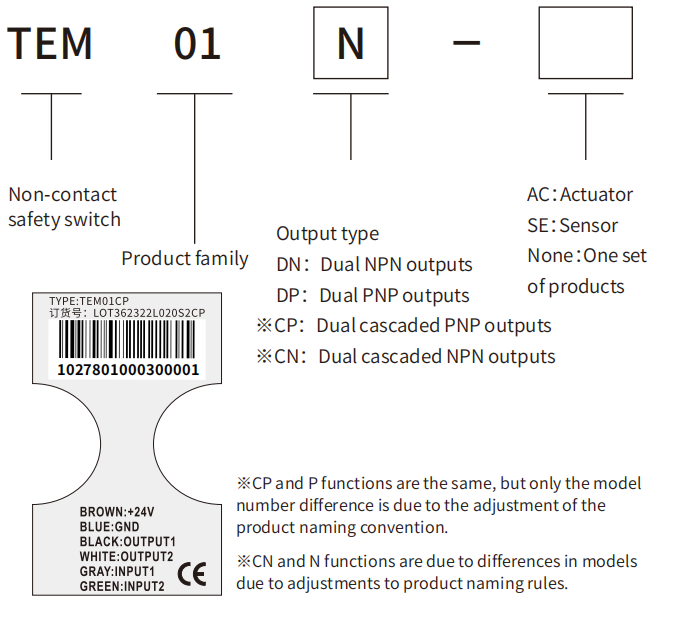

Model description

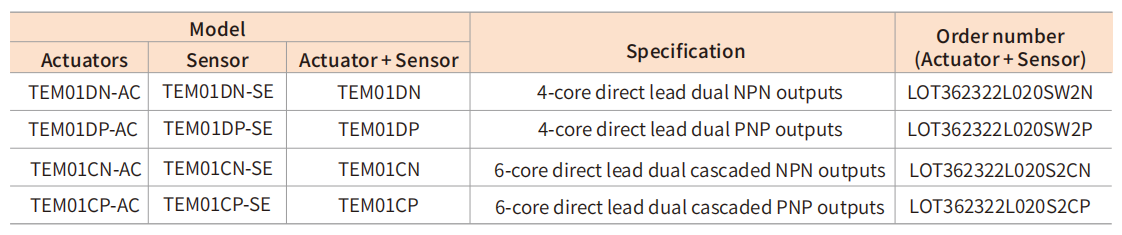

TEM01 series RFID switch selection guide

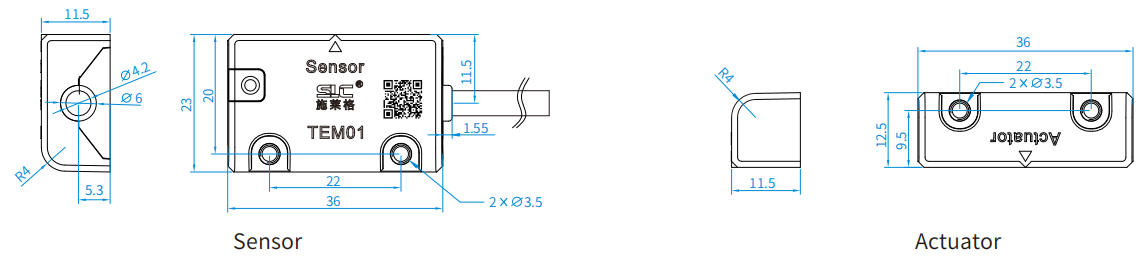

TEM01 series RFID switch installation size (mm)

※Depending on the product configuration and manufacturing process, the actual product size and weight may vary, please refer to the actual product

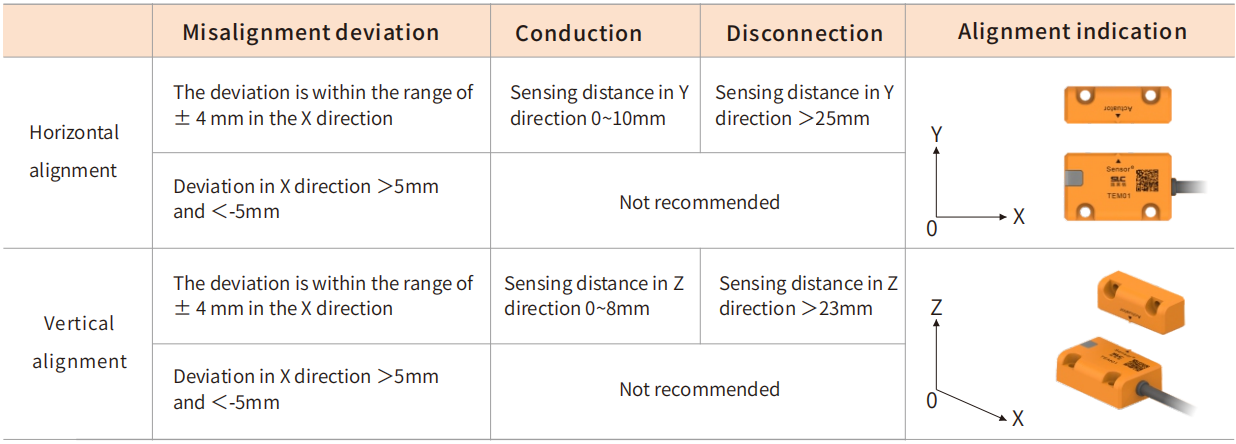

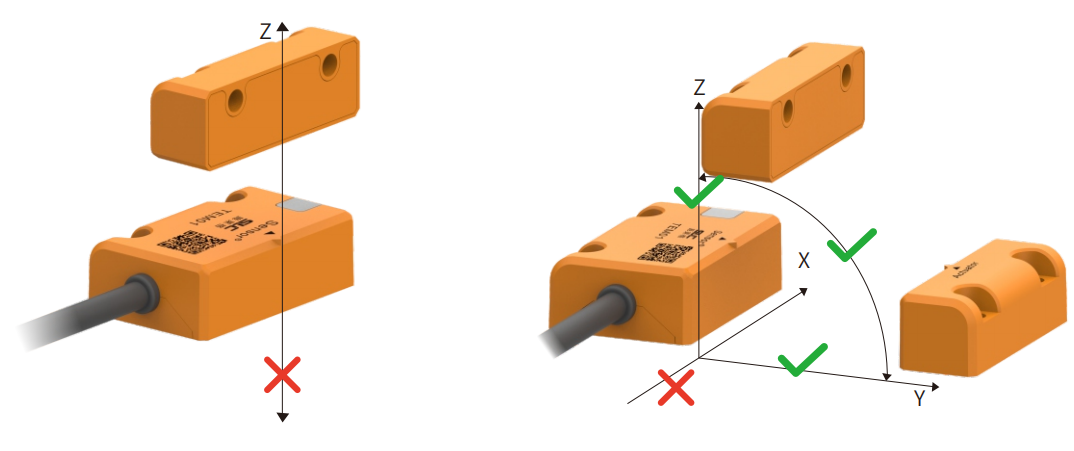

TEM01 series RFID switch approach direction diagram

TEM01 series RFID switch sensing distance

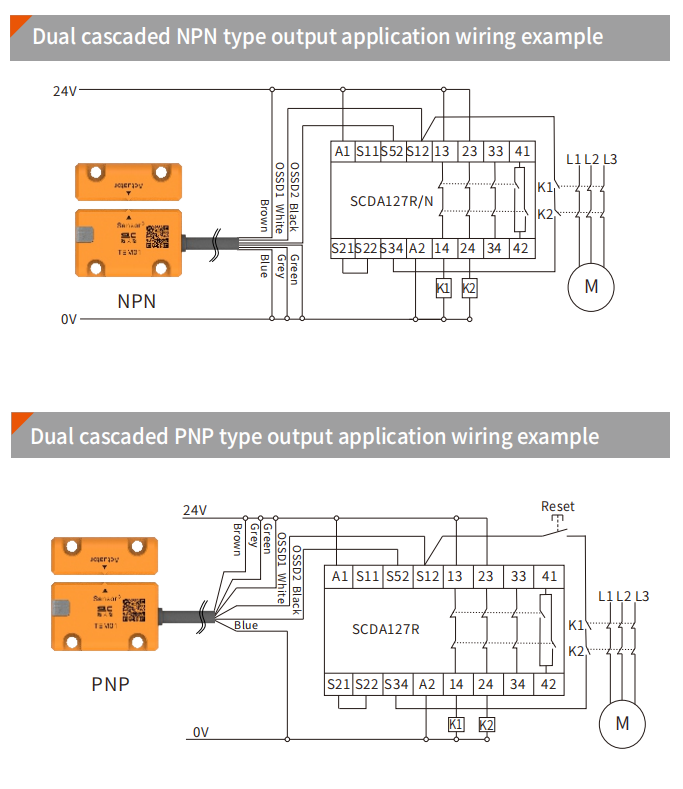

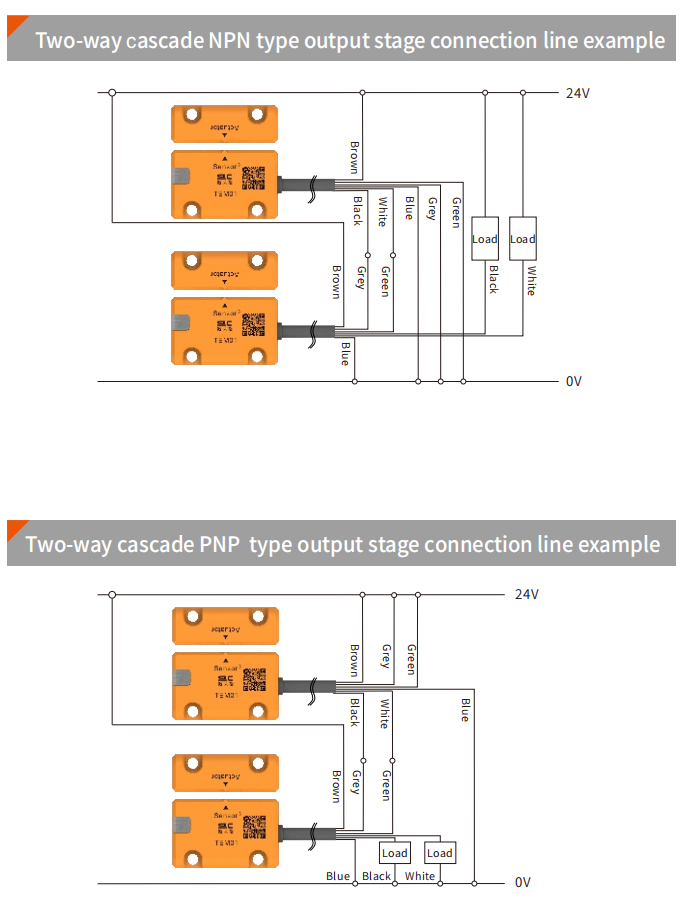

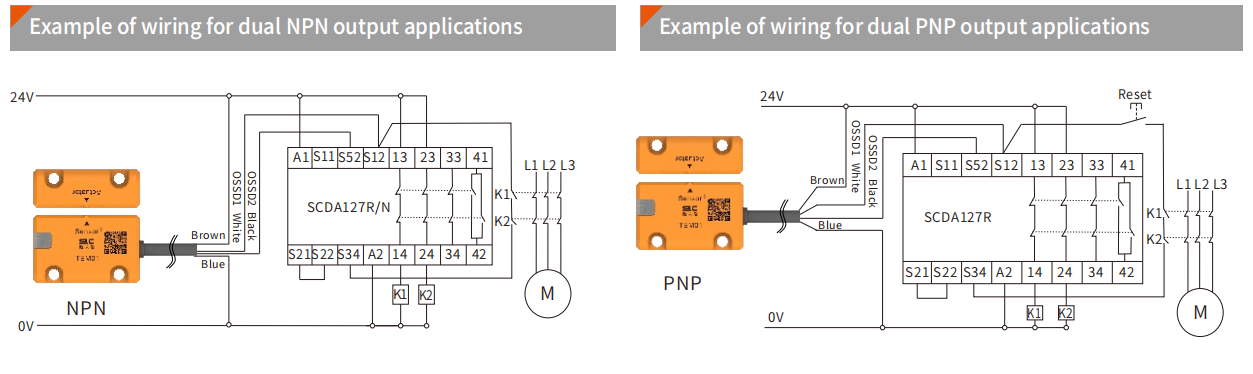

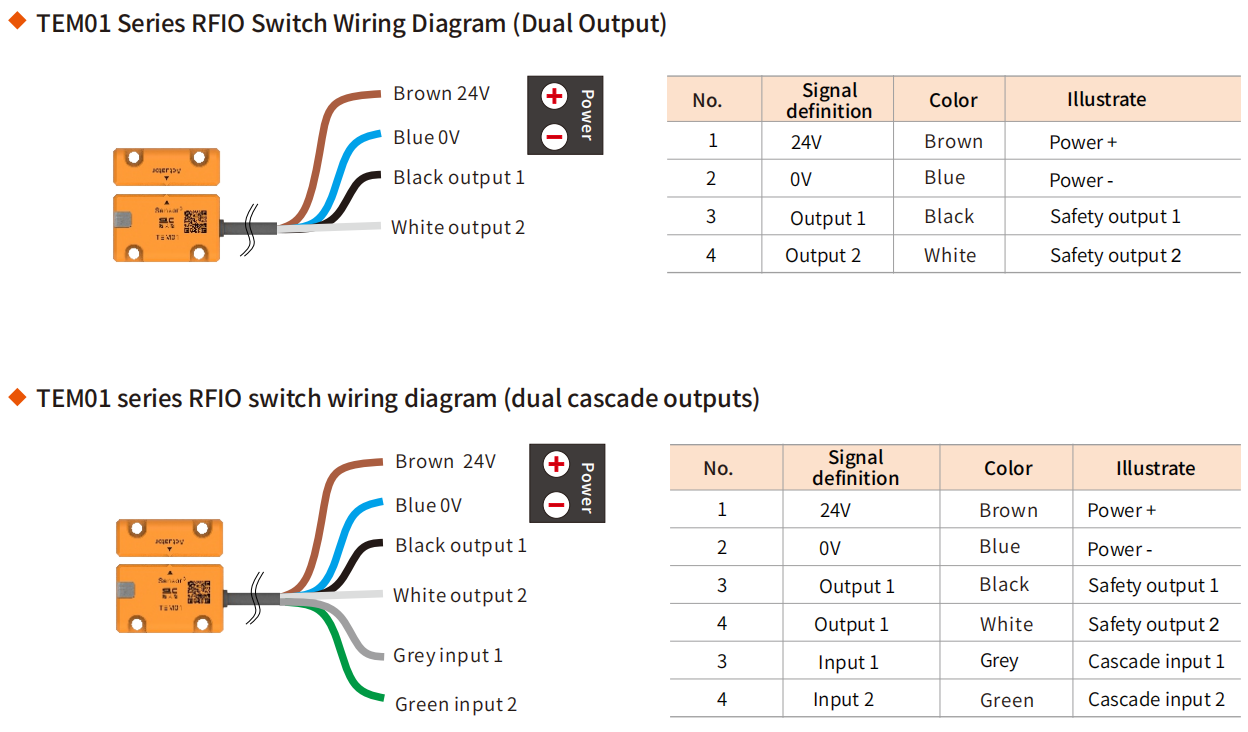

TEM01 series RFID switch wiring diagram

TEM01 SERIES RFID SWITCH
