Features

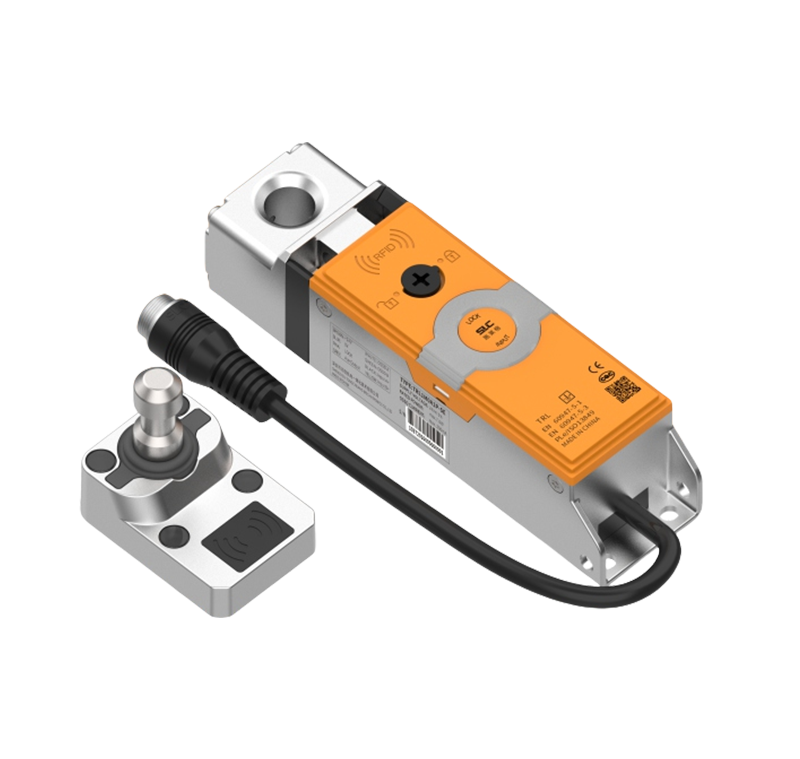

The TRLl andTRL3 series safety door locks are based on RFID radio frequency induction coding technology and use a monitored stainless steel lock bolt mechanism for a protective doo「device involving personal or machine safety. Safety Level S1L3 or Ple can be achieved with safe dual-channel output technology and can be used with safety latch.

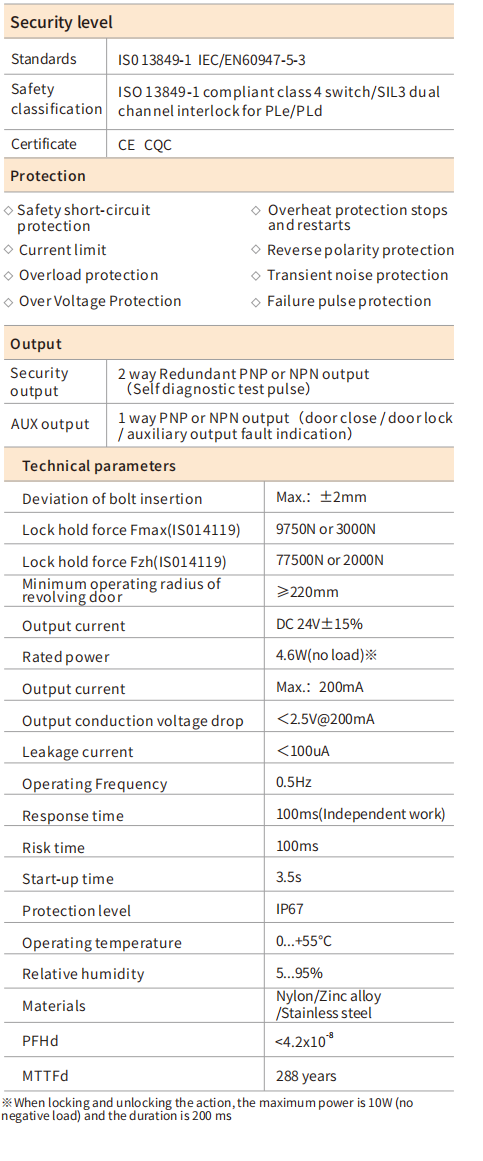

Technical parameter

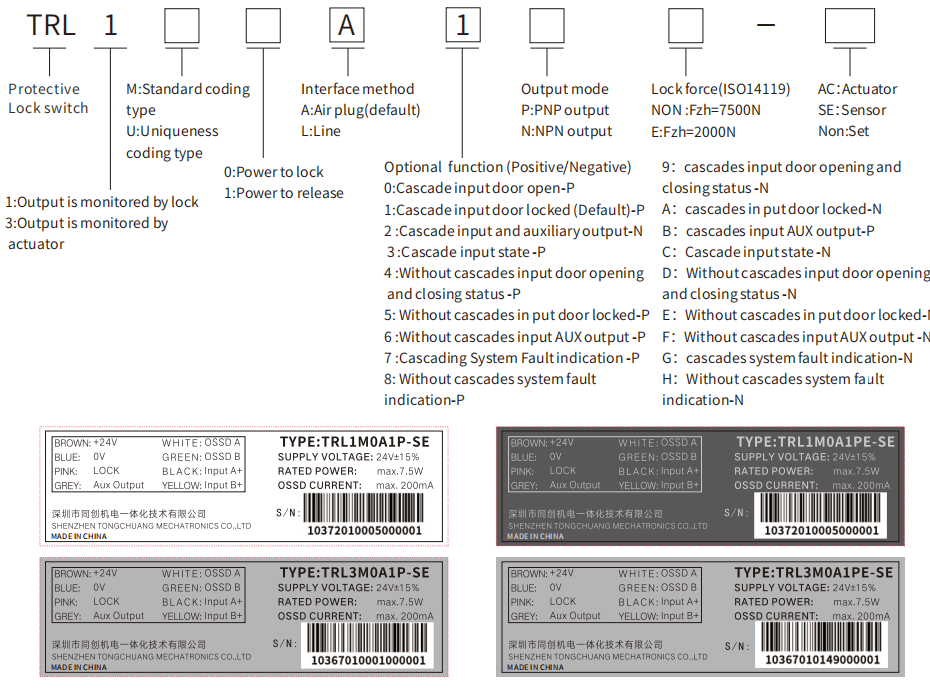

Model nurmer description TRL1

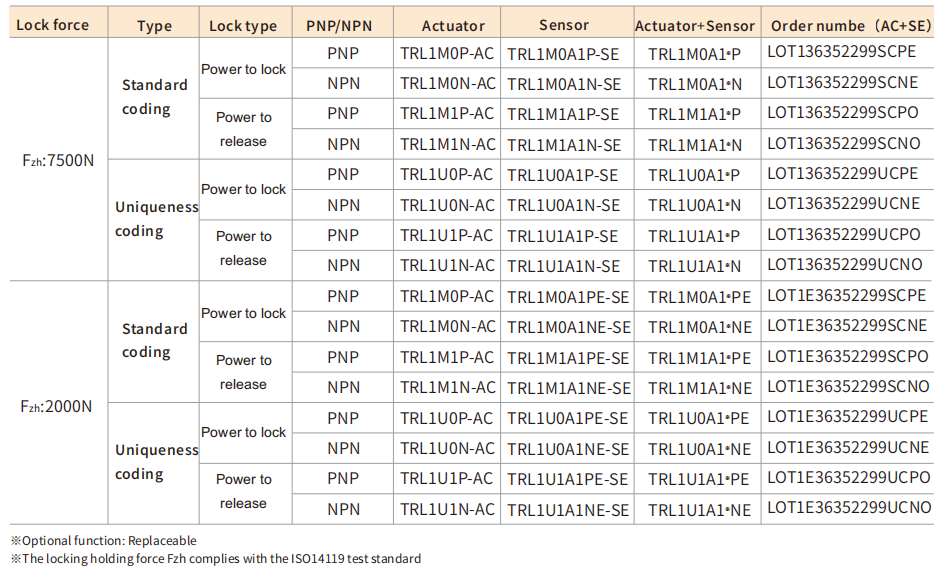

TRL1 Selection table type

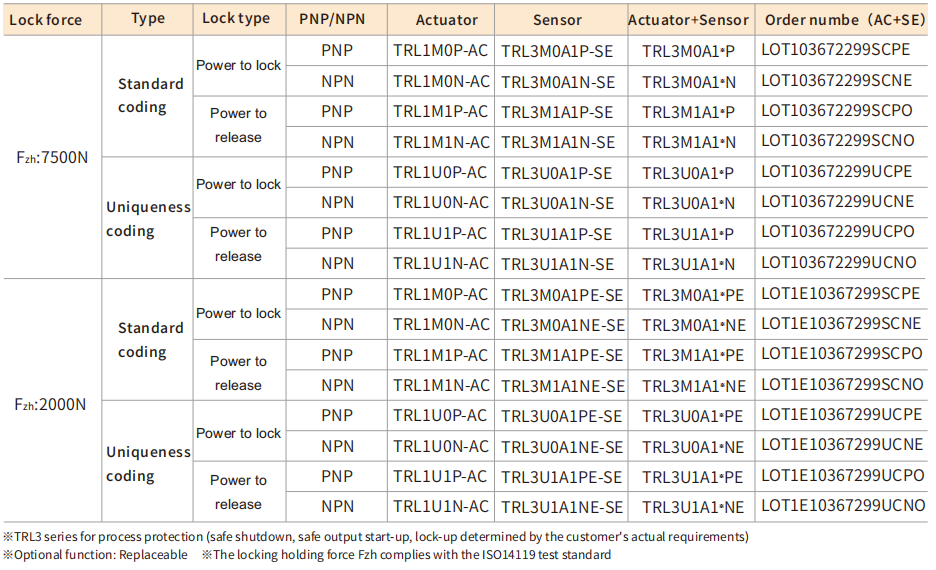

TRL3 Selection table type

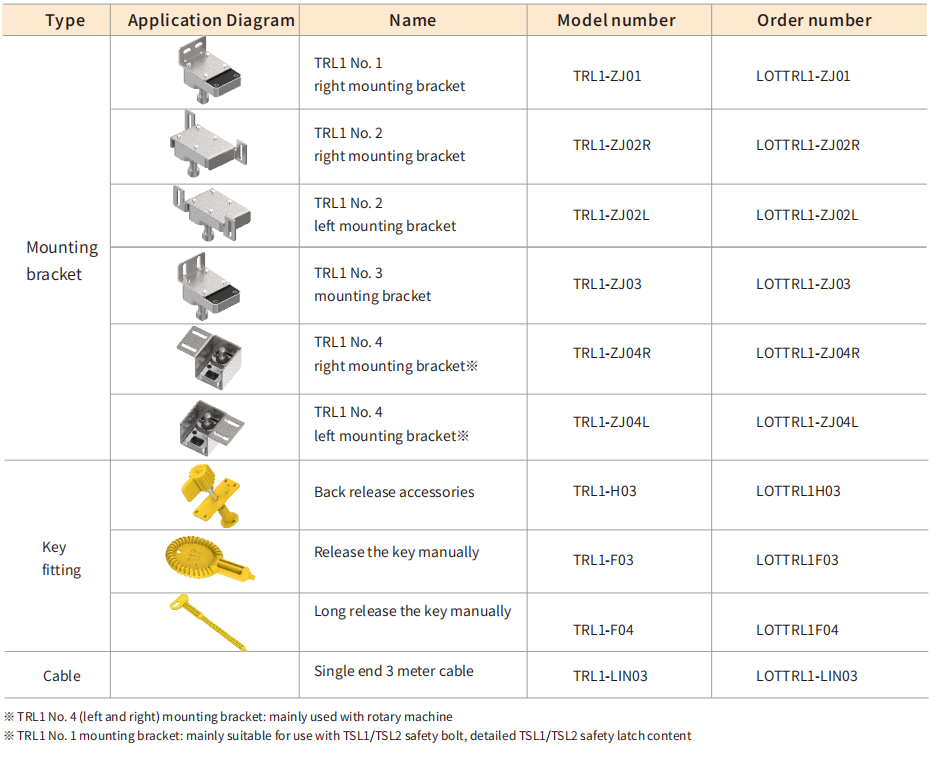

Accessories selection table

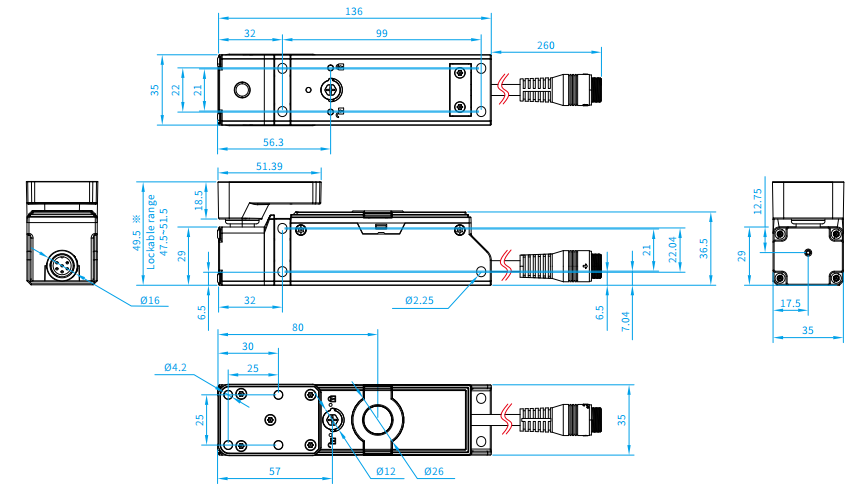

Mounting dimensions of sensors

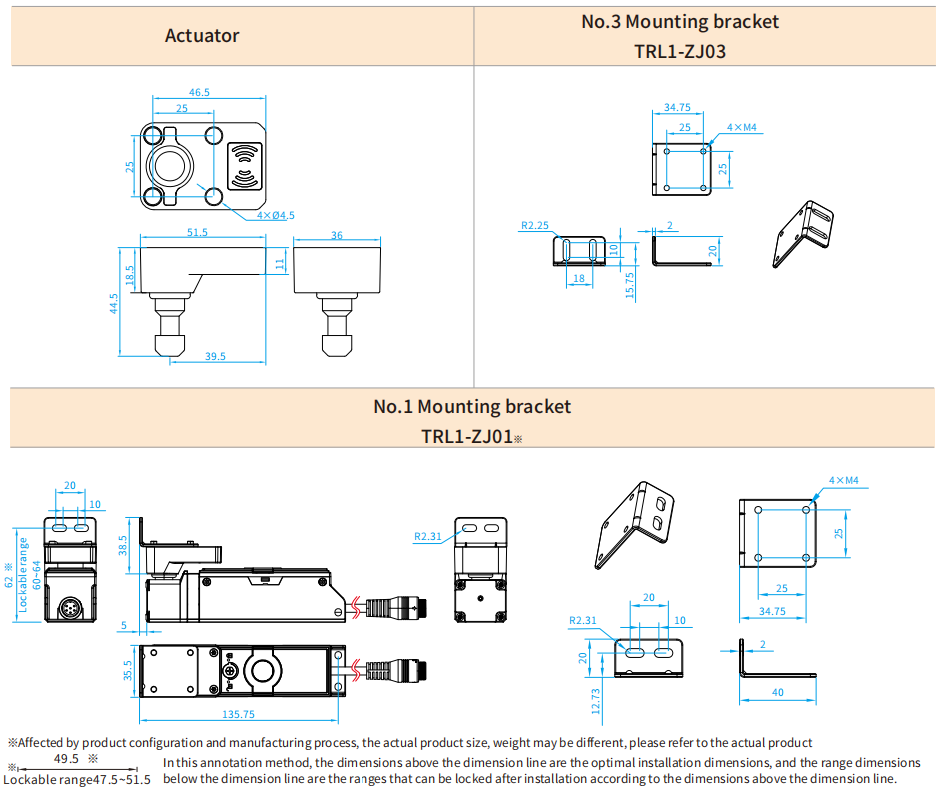

External dimensions of actuators and mounting brackets
