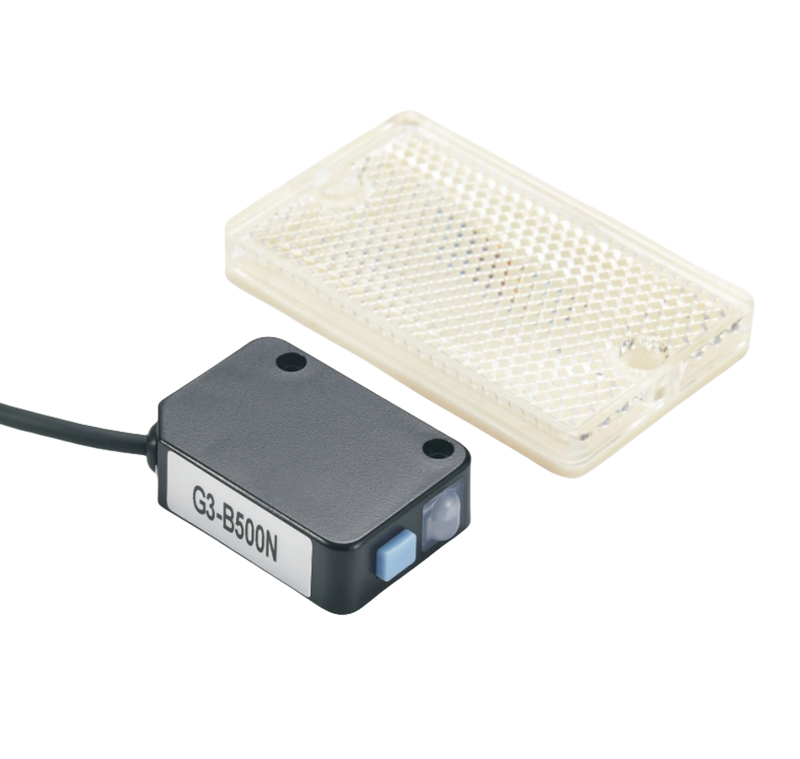

G3-A100/300 (N/P/NP), G3-B500/1K/2K(N/P/NP)

Characteristics:

1. Use all key settings.

2. Adopt infrared light source.

3. Suitable for detecting objects with different shapes.

4. Suitable for detecting transparent objects.

The G3 series Photoelectric Sensors by XAORI Technology are high - performance sensors designed for a variety of detection tasks, especially for transparent objects.

Features

All - Key Settings: These sensors feature all - key settings, allowing for easy operation and configuration according to different requirements.

Infrared Light Source: They adopt an infrared light source, which provides reliable and stable detection performance.

Versatile Object Detection: Suitable for detecting objects with different shapes. More importantly, they are specifically designed for detecting transparent objects, making them ideal for applications involving glass, films, and other transparent materials.

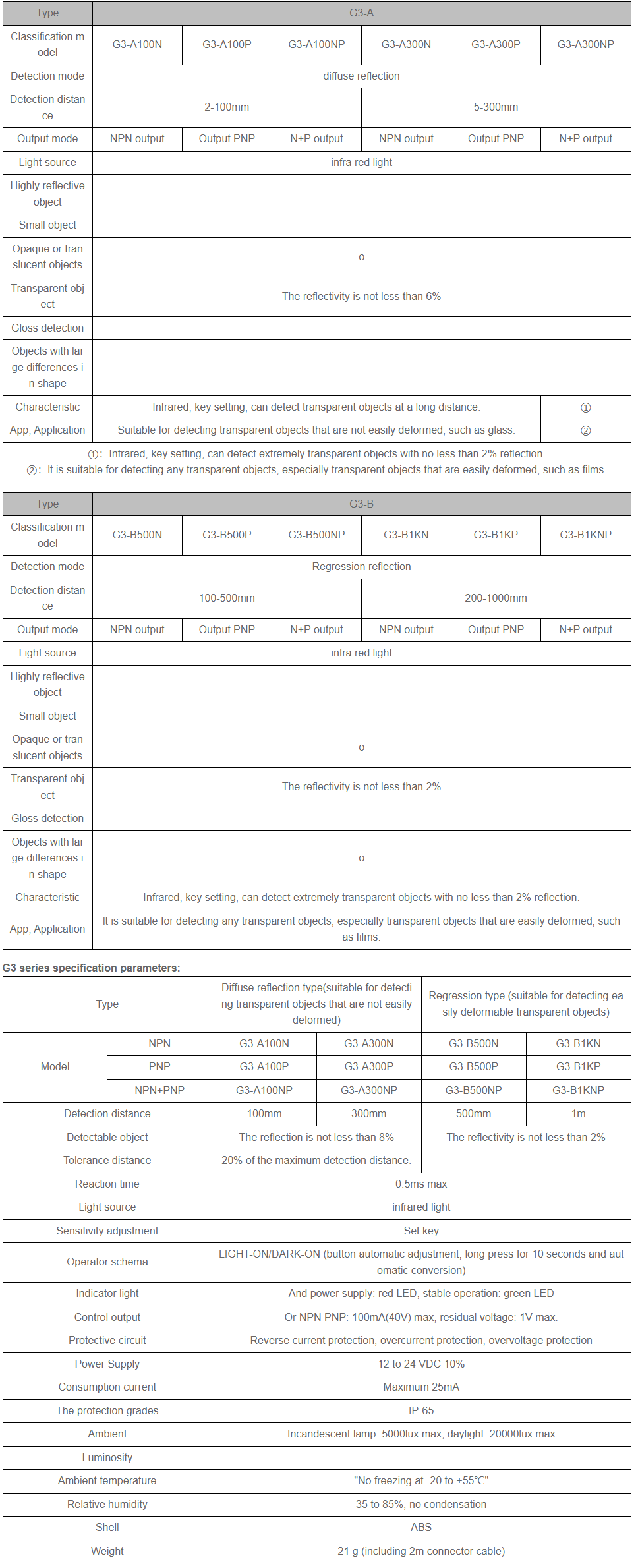

G3-3 series

It is suitable for detecting transparent objects that are not prone to deformation, such as glass, etc.

G3-B series

It is suitable for detecting any transparent object, especially those that are prone to deformation, such as thin ones.

Brown line-10 ~ 24vdc

Blue line-0vdc

Black line ---NPN output

White line ---PNP output

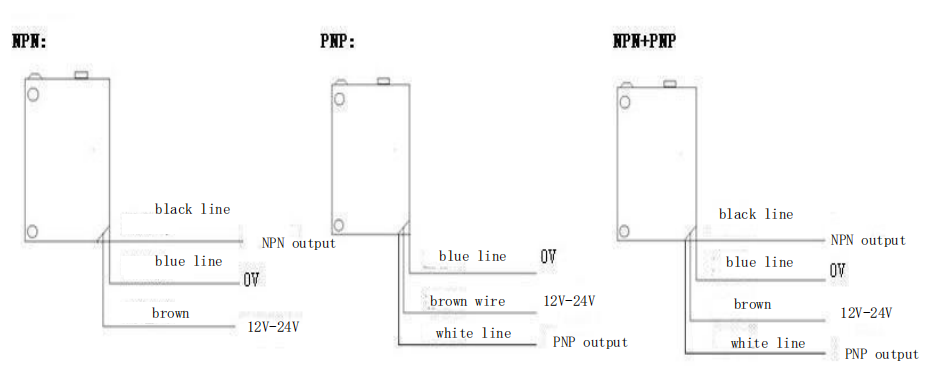

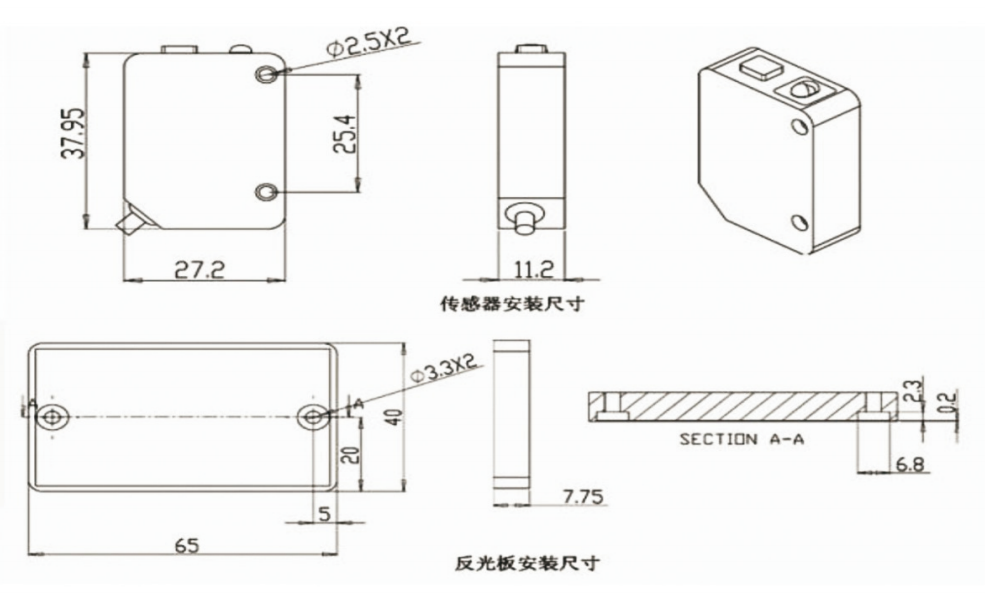

Wiring Drawings

Setting method:

1. Diffuse reflection type: After installation and fixation, aim the detection surface of the sensor at the detected object, press the setting button for 1~3 seconds and then release, and the indicator light flashes rapidly for six times. After the indicator light is stable, the set object can be stably detected at the set position.

2. Regression type: aim the sensor at the reflector, press and hold the button for 1~3 seconds, then release it, and the indicator light flashes rapidly for six times. After the indicator light is stable, the set object can be stably detected between the reflector and the sensor.

3. Normally open and normally closed switch: hold the button for 10-15 seconds and then release it, the indicator light flashes quickly, and the mode switch is successful.

Use tips and suggestions:

1. Please do not direct strong light into the receiving and emitting mirror of the sensor.

2. During use, if the receiving and emitting mirror surface of the sensor is condensed or contaminated with oil or dust, please wipe the mirror surface with clean, dry and soft cloth, which can restore normal work.

3. If the sensor works in a working environment where oil stains or dust spread, please keep the mirror of the sensor clean.

4. If there are frequent large-scale light changes in the use environment, or there are many highly reflective items, or people or materials will pass through the opposite side of the sensor, it is recommended to set a fixed light shield on the opposite side of the sensor to ensure the relability.

Product assurance

1. Shelf life: From the date of shipment of this product, the shelf life is one year. If the product fails due to quality problems, the product will be exchanged for free within one year.

2. Non-warranty scope: the product performance and specifications are defined in the manual, and only the specifications and performance of this manual are used for warranty. Our company can provide technical support and suggestions for improvement for customers' improper use or mismatch of specifications and models, but it does not promise unconditional warranty.
