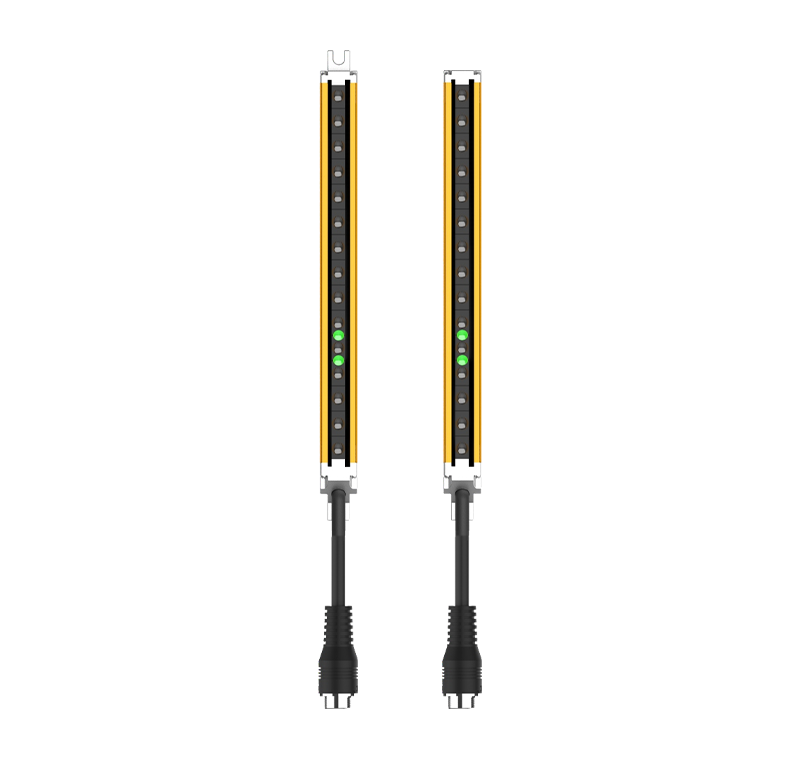

LCM series miniature safety light curtain

LCS series safety grating is a new type of through-beam safety photoelectric protection device developed and developed using the current international advanced technology. The smallest cross-section in the industry is 15×15mm. It has the characteristics of high safety and high reliability through ISO13849-1 PLe and EN61496-1/2 Type4 certification. At the same time, the structure is compact and the shape is slender, and it can achieve single-end without blind spots. Professional optical design and circuit design make the safety grating have very good resistance to electromagnetic interference and ambient light interference, so it can be used in many harsh environments and structurally restricted areas.

This grating has the following characteristics:

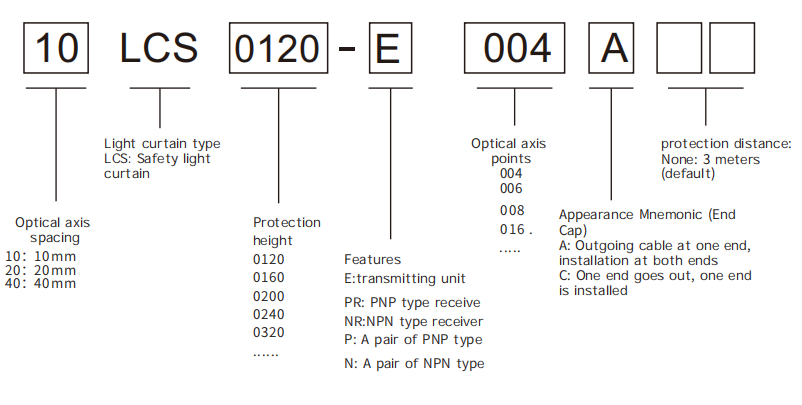

LCS series miniature safety grating product structure model description

※Appearance mnemonic code C type requires additional purchase of "LCS back mounting bracket"

◆ Dual-channel design reduces the probability of dangerous failure of safety gratings and improves safety performance;

◆ The grating resolution is 14mm, 25mm, 45mm optional;

◆ Adopt the most advanced infrared light synchronization technology, easy to install and use;

◆ C-type grating can realize single-ended without dead zone;

◆ It has good field application ability, strong anti-light interference and anti-electromagnetic interference ability;

◆ Pulse test, self-diagnosis of output circuit, short-circuit fault detection and other means to ensure functional safety;

◆ Small in size, the cross-sectional size is only 15×15mm;

◆It comes with two ends installed, no need to install the bracket, easy to use;

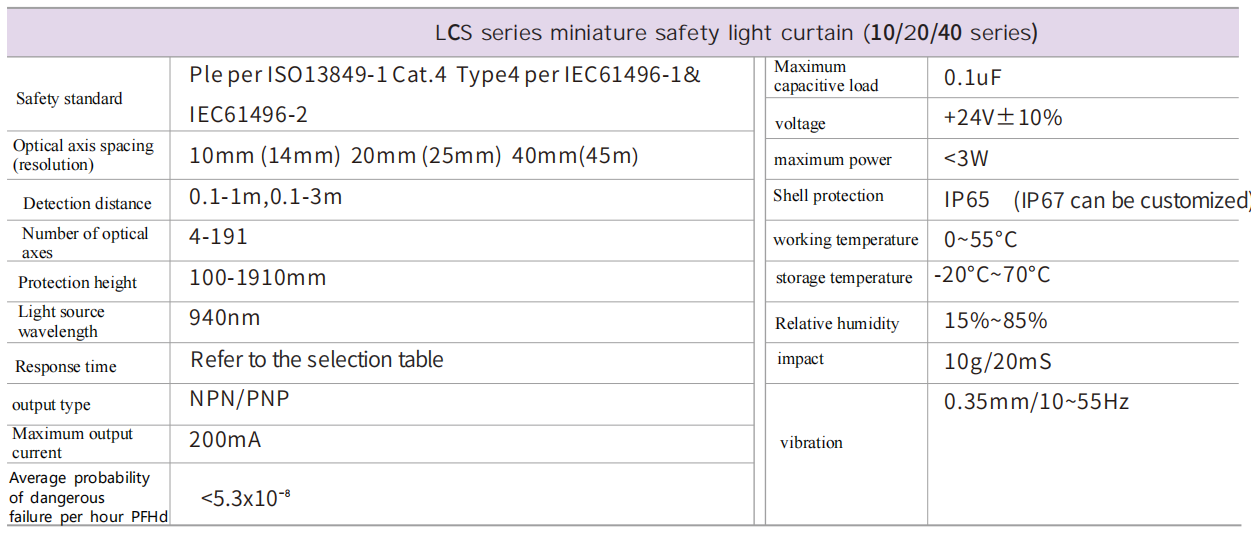

LCS series miniature safety curtian technical parameters

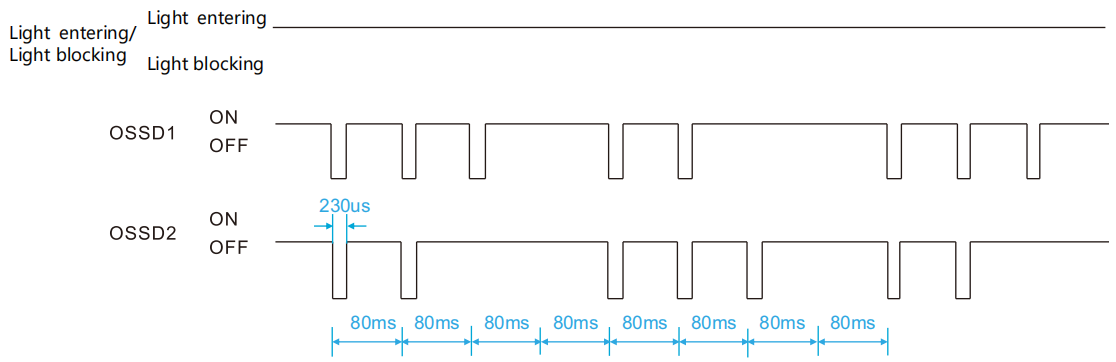

LCS series miniature safety light grid OSDD output self-diagnosis sequence

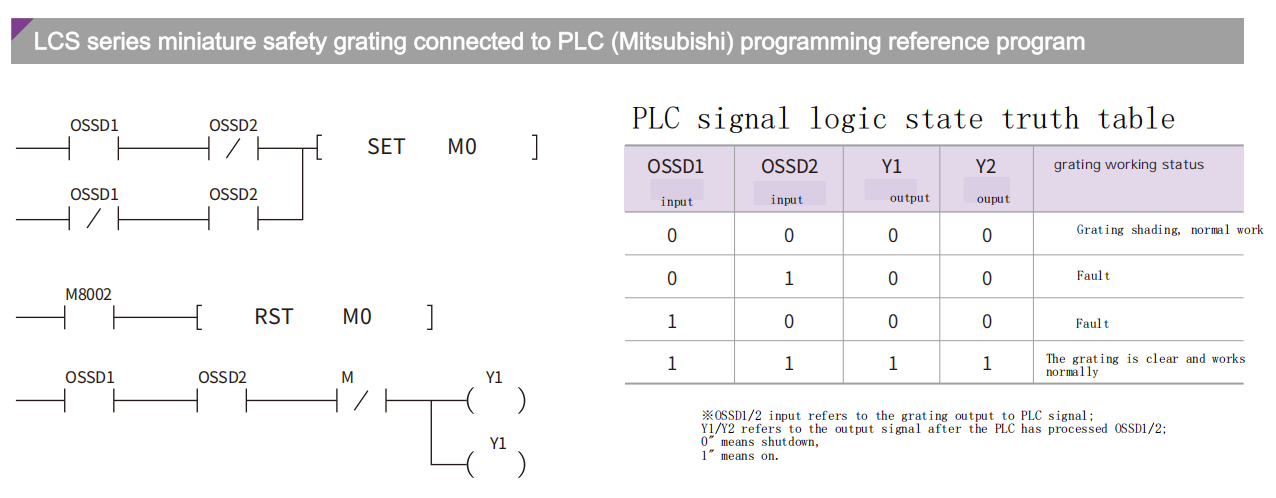

LCS series miniature safety light grid has OSSD output self-diagnosis function. During the normal light-passing OSSD output of the grating, the internal control timing control unit of the grating periodically and actively turns off the outputs of OSSD1 and OSSD2 in turn. When OSSD1 or OSSD2 is closed for a short time, the internal timing control unit of the grating detects whether the level of OSSD1 or OSSD2 is consistent with the expected result. If it is consistent, the OSSD switch is in normal working state; if it is inconsistent with the expected result, the OSSD In the event of a failure, the system will immediately shut down the two OSSDs to ensure functional safety. At this time, the red LED indicator light of the receiving grating will flash to indicate the failure. Therefore, when the load connected to the LCS safety light grid is a PLC or a fast intelligent device with MCU control, it is necessary to filter out the self-checking pulse (recommended 1ms) in the program to prevent the PLC or MCU from detecting this waveform and causing the machine to stop. The figure below is the timing chart of the output waveform of the PNP-type grating self-diagnosis

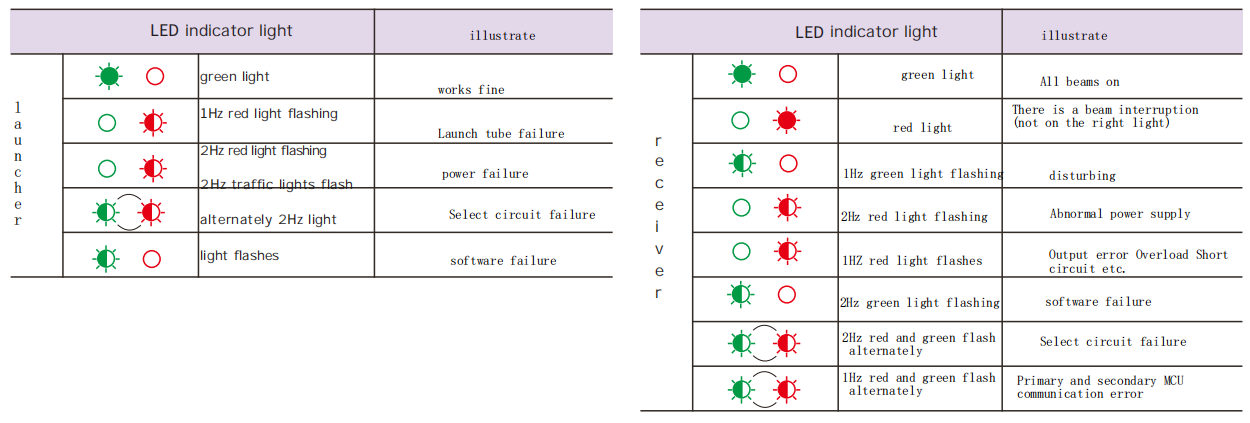

LCS series miniature safety light grid common troubleshooting

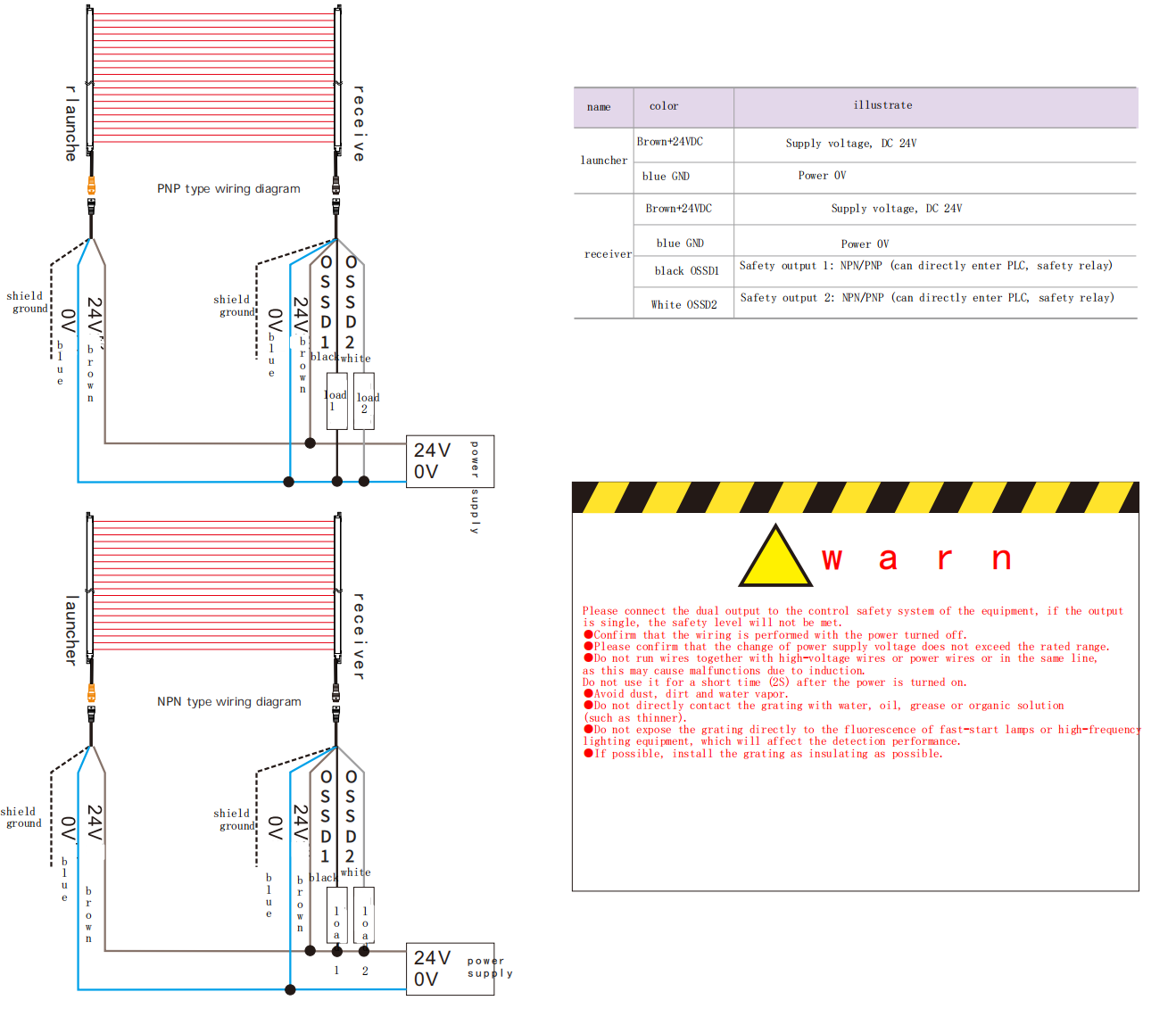

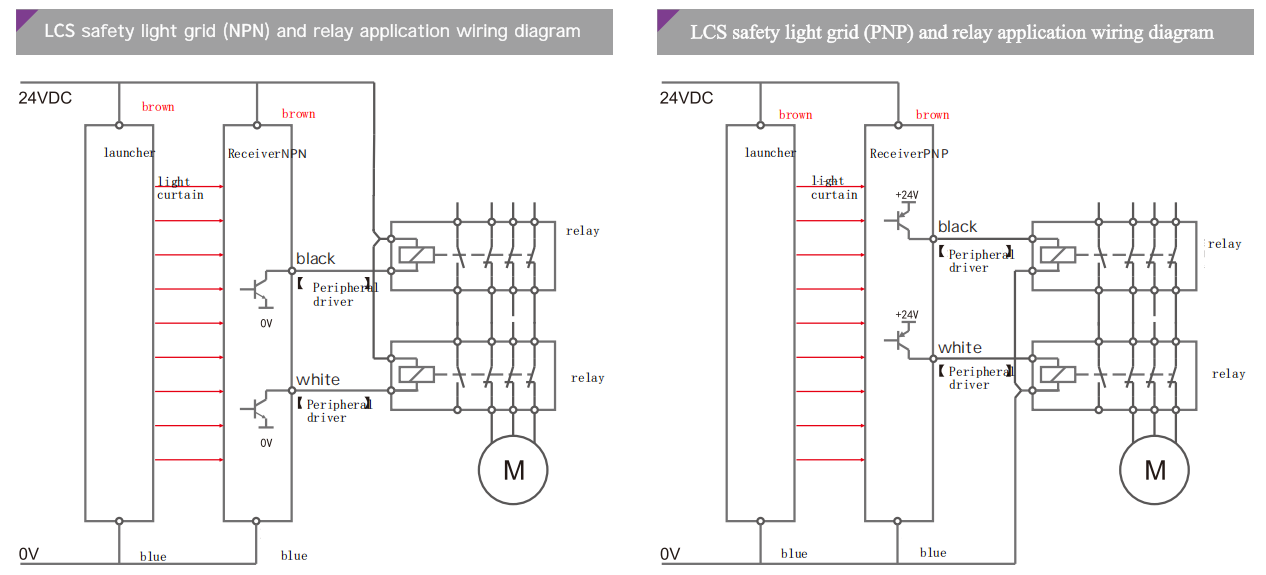

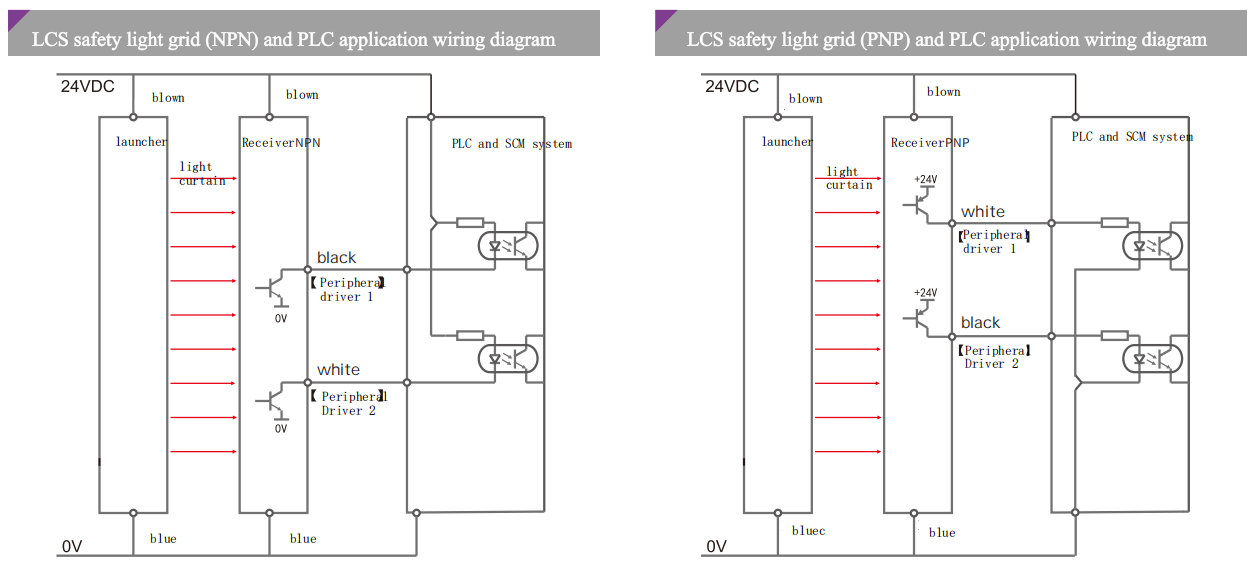

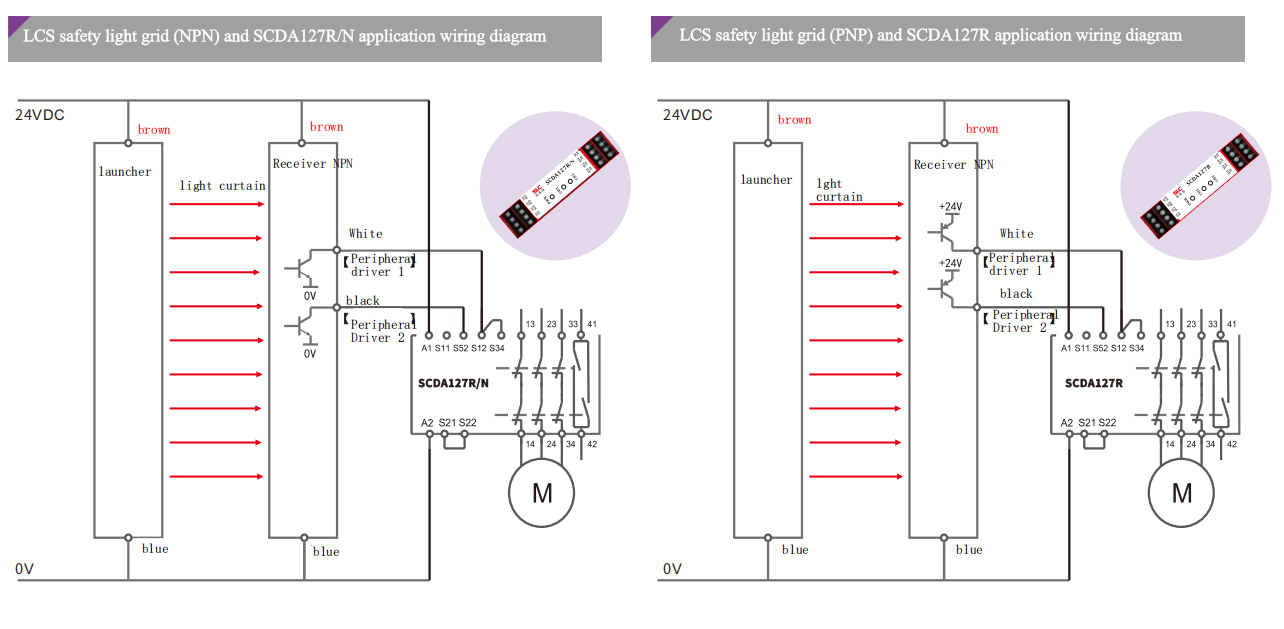

Definition and application wiring diagram of LCS series miniature safety light grid signal interface

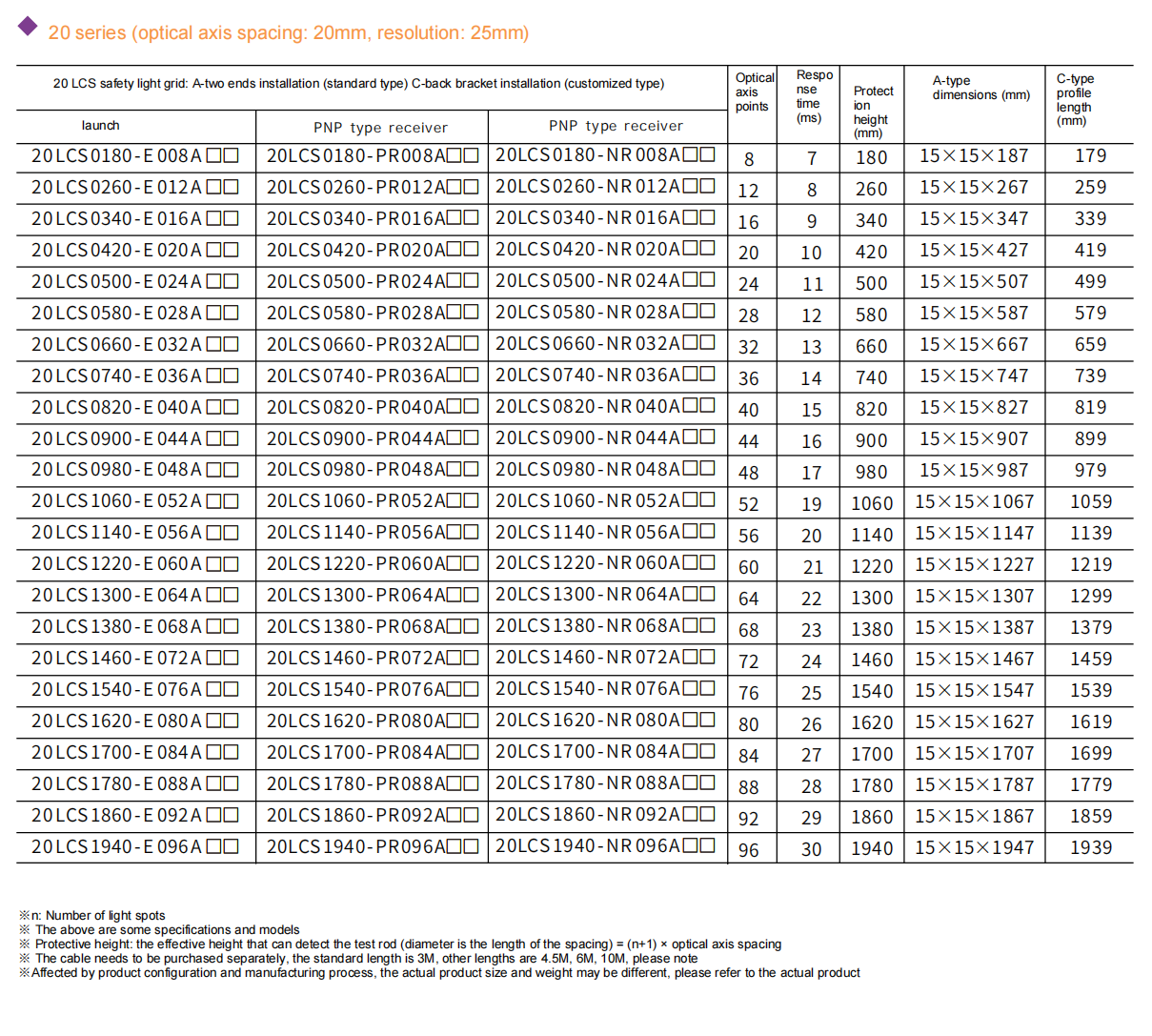

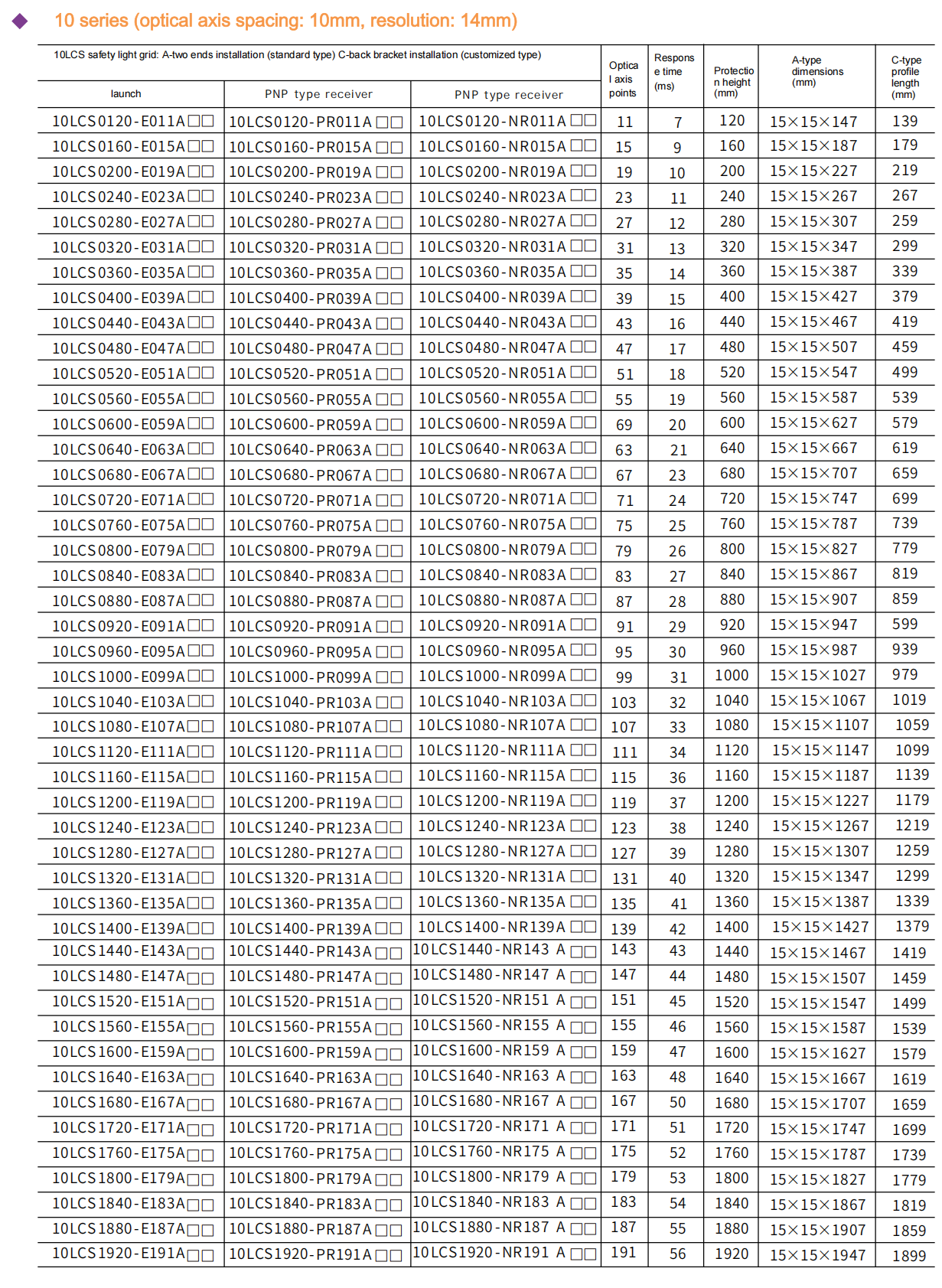

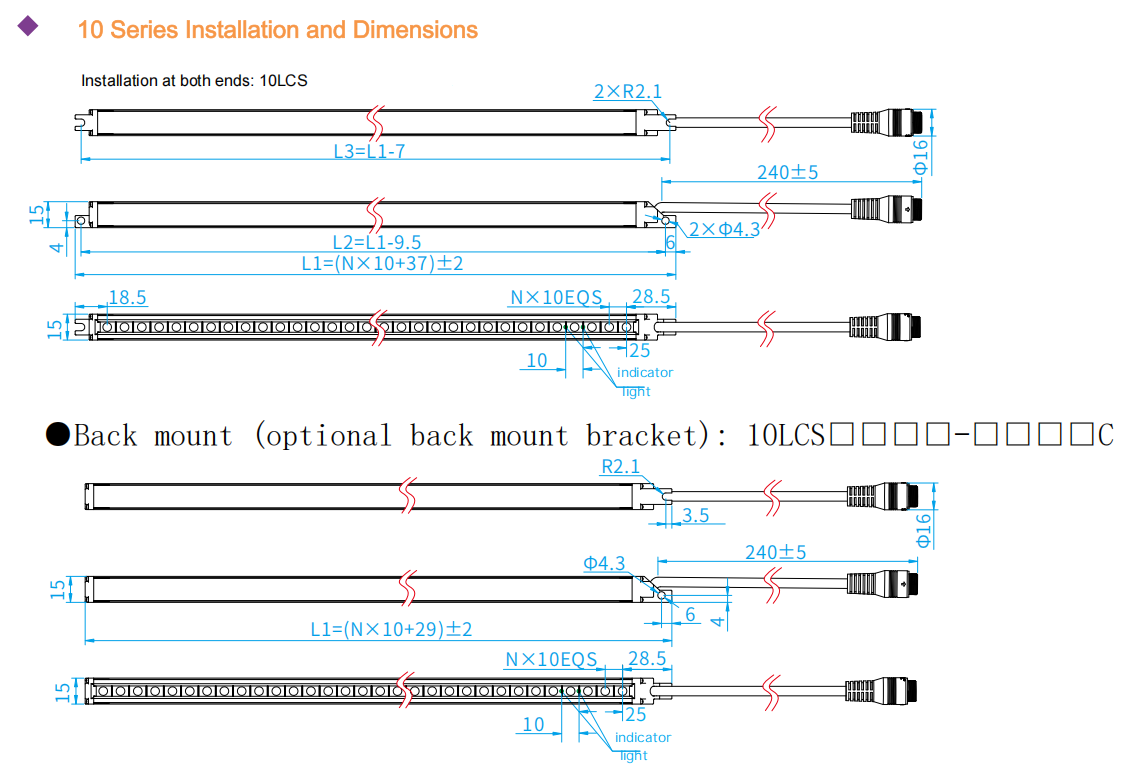

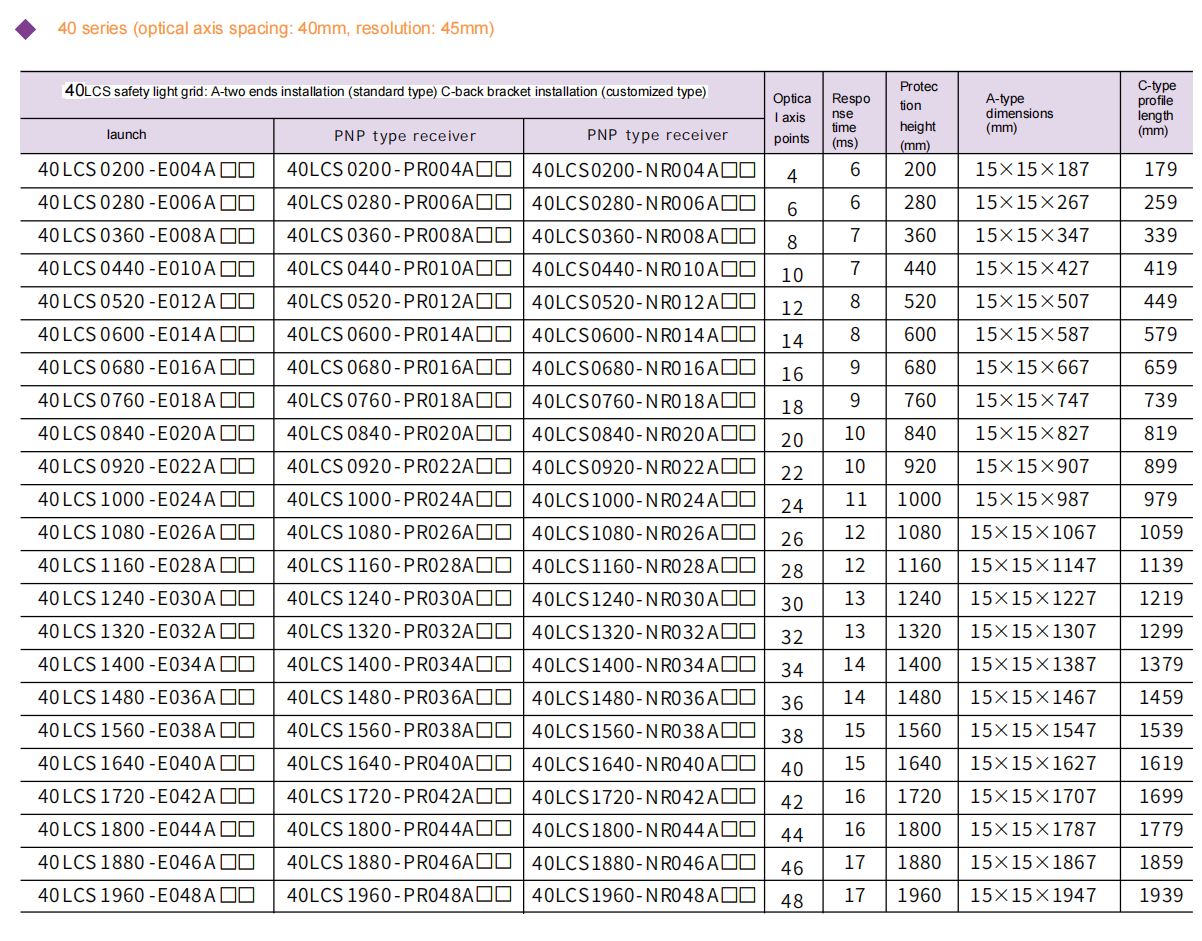

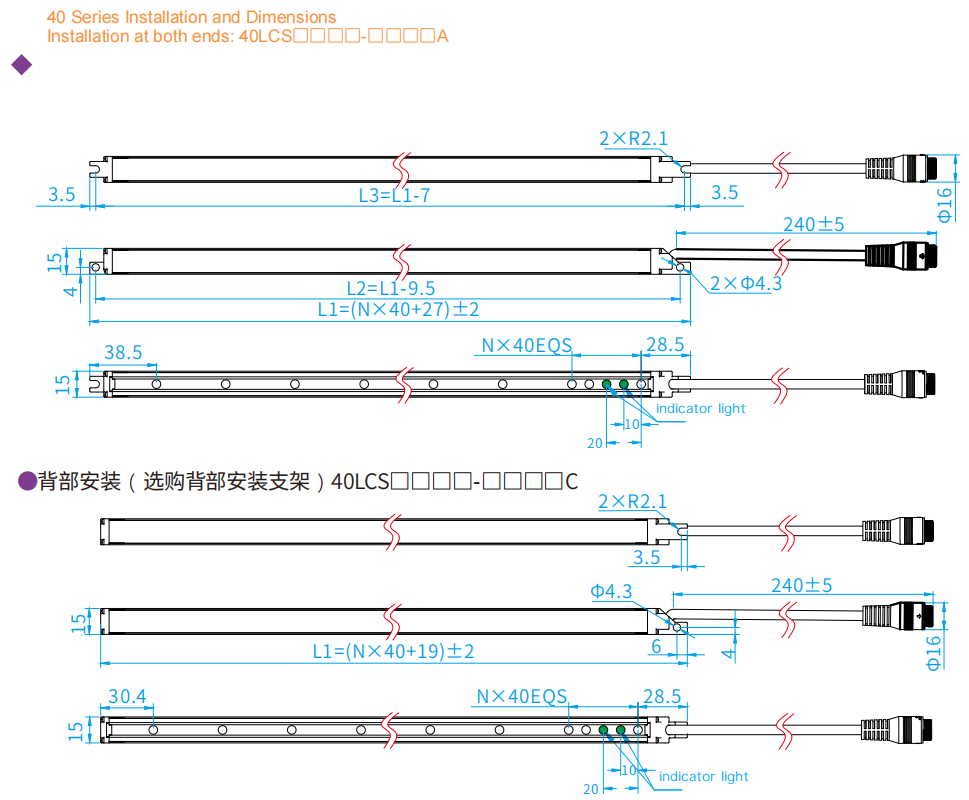

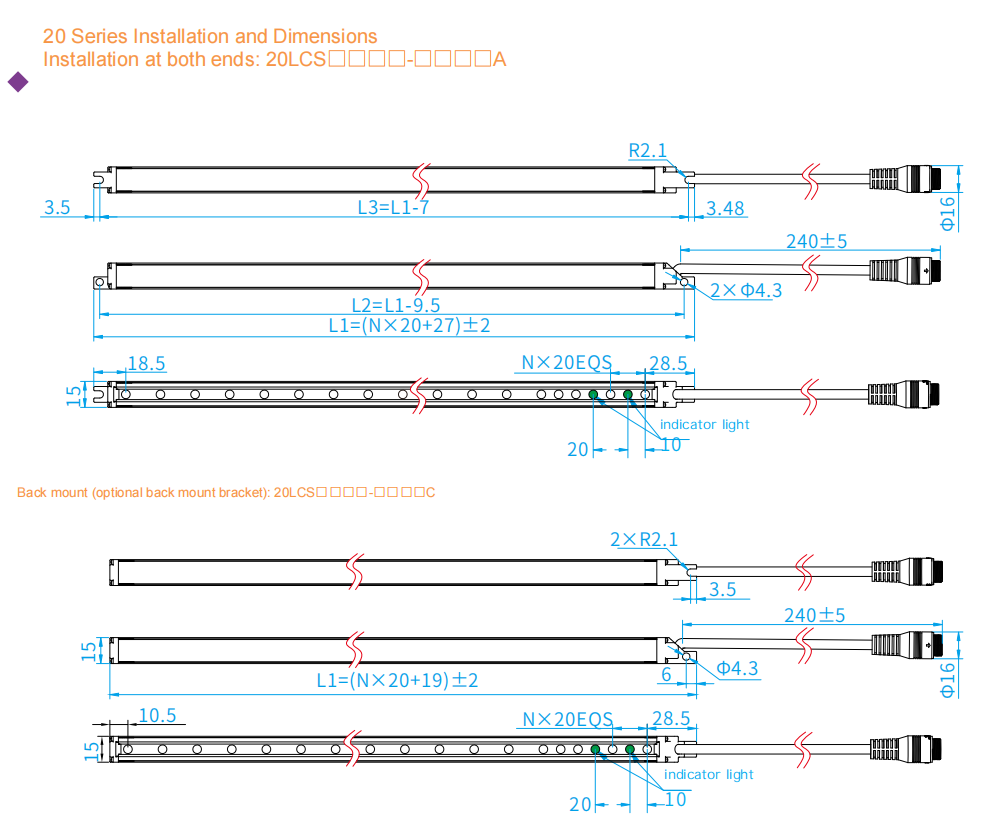

Specification selection and installation size of LCS series miniature safety grating

※Affected by product configuration and manufacturing process, the actual product size and weight may be different, please refer to the actual product

※ n: number of light spots

※ The above are some specifications and models

※ Protective height: the effective height that can detect the test rod (diameter is the length of the distance) = (n+1) × optical axis distance Degree 4.5M, 6M, 10M need to be noted.

※ n: Number of light spots

※ The above are some specifications and models

※ Protective height: the effective height that can detect the test rod (diameter is the length of the spacing) = (n+1) × optical axis spacing

※ The cable needs to be purchased separately, the standard length is 3M, other lengths are 4.5M, 6M, 10M, please note

※ Affected by product configuration and manufacturing process, the actual product size and weight may be different, please refer to the actual product

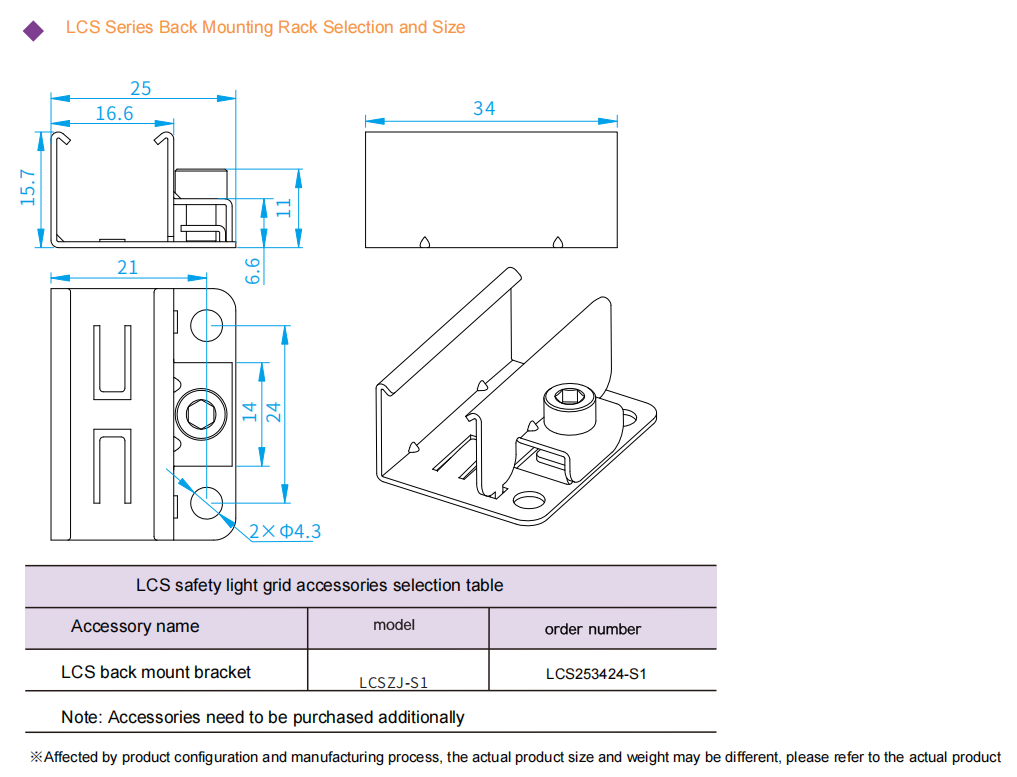

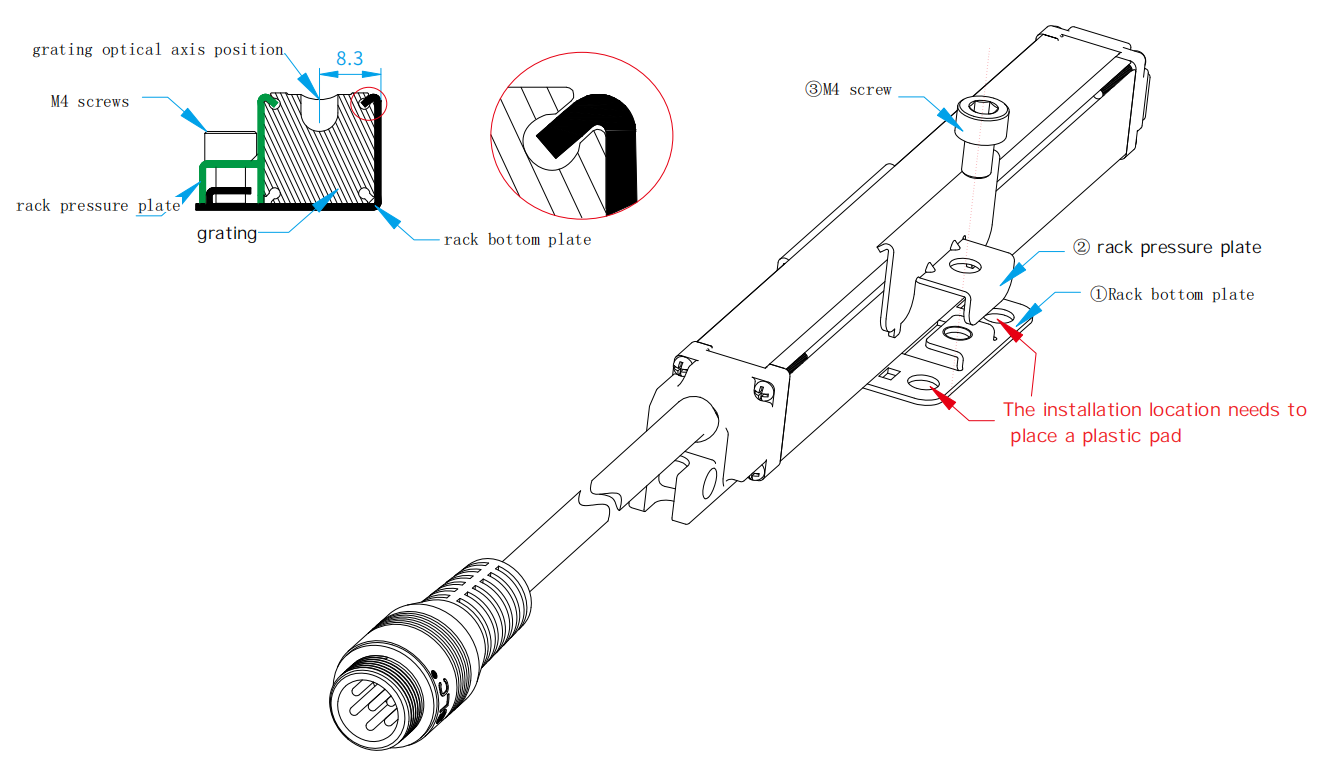

LCS series miniature safety grating back mounting bracket installation method

①Hook the bracket bottom hook into the groove on the upper edge of the grating shell, and stick to the grating shell;

②Hook the hook of the bracket pressing plate into the groove on the other side of the grating shell, close the grating shell, and insert the lower two bosses into the corresponding holes of the bracket bottom plate;

③Use the matching M4 screws to fasten the bracket pressing plate It is firmly locked with the bottom plate of the rack;

④Finally, use the self-provided M4 or M3 screws and matching M4 plastic gaskets to fix the installed grating and bracket components to the use environment through the two Φ4.3 holes in the bracket bottom plate.
