Complete certification：

The full series of Safety Grating, safety relay, safety door locks, and door magnetic switch products meet the national CNAS unified certification standards, obtain ISO9100 quality management system certification, and have CE, PLE, PLD, Reach, EMC, ROHS, FCC and other certification and test reports.

CPU self -inspection

The light curtain uses a CPU self -inspection. When the light curtain itself fails (for example, the light source is not synchronized, the light source is insufficient, the light drive circuit error, the main control circuit error, the cable problem, and the error of receiving the driving circuit, the main control circuit error occurs in the main control circuit. , CPU errors), the light curtain can ensure that an error signal does not send an error signal to the controlled device to ensure the safety of the light curtain.

Double independent OSSD output

In terms of output, in order to pursue better security, the double independent redundant output is adopted to make the automatic prevention from having high security, which can directly drive safety relays and security PLC.

External relay contact bonding protection (EDM) function:

When the output signal of the light curtain needs to be connected to the customer's ordinary relay/contactor equipment, in order to ensure the security of the entire system, the safe light curtain has the EDM function of the "external relay contact status" to prevent the external due to external external due to external external due to the external external due to external external external. The loss of security protection function caused by relay adhesion failure.

Super anti -interference ability:

Using infrared communication and dedicated optical systems, strong anti -interference capacity (for electromagnetic signals, frequent flash lights, welding arc light and surrounding light sources have good anti -interference capabilities)

The reaction is more sensitive:

All the light curtain product response time in this series is within 5ms, overload and short -circuit protection. When the output of the safety light curtain is due to overload or short circuit, the light curtain will enter the protection state, and the light curtain safety system will be closed. Self -detection: The power supply is connected to the power supply. Within 2 seconds, the self -test is implemented to ensure whether it is wrong.

Power -powered delay function:

After 3 seconds of electricity, the light curtain can make the equipment work normally. It can give the operator and equipment a buffer time to improve the safety of equipment and personnel.

With shielding (floating/fixing cubs) function:

Can customize automatic shielding and setting shielding functions, greatly improving the use of various on -site environment.

Light synchronization technology:

Unique light synchronization technology replaces traditional data cable synchronization to avoid signal interference, while saving longer data cable connections.

Super high detection accuracy:

Standard products provide hardware accuracy of 2mm, and the accuracy of software cross algorithm is 1mm. It realizes high -end demand with small spacing, long distance, high accuracy, and long size.

Detection height 60mm ~ 4000mm range selection

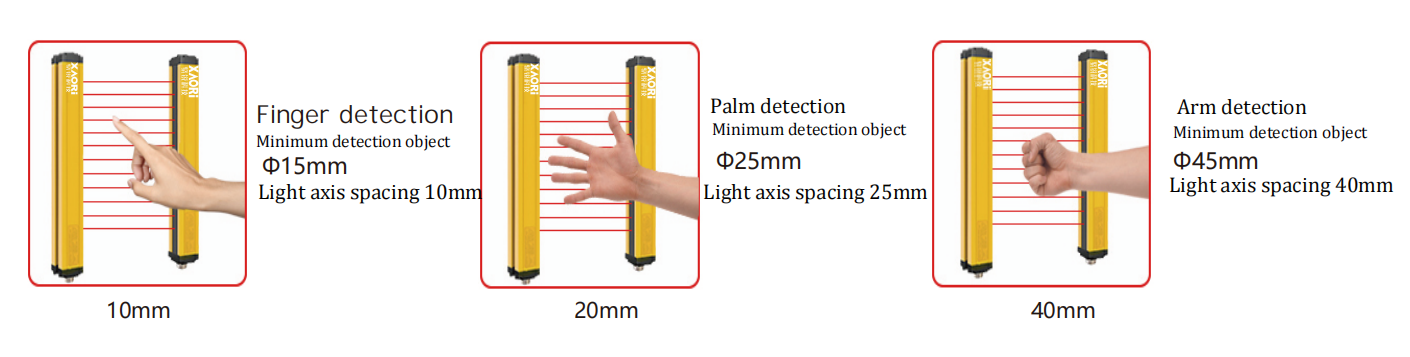

According to the size of the minimum detection object, there are three types of types of commonly used

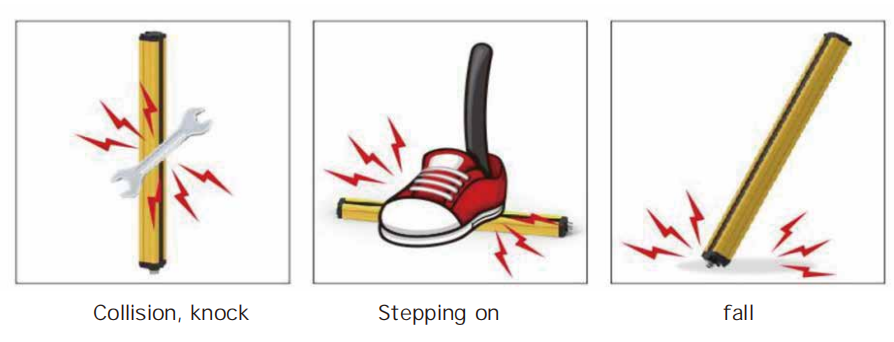

The product has a solid metal shell, which reliably protects its non -workpiece collision, stomped and other impacts

Easy to align the light, ultra-long range

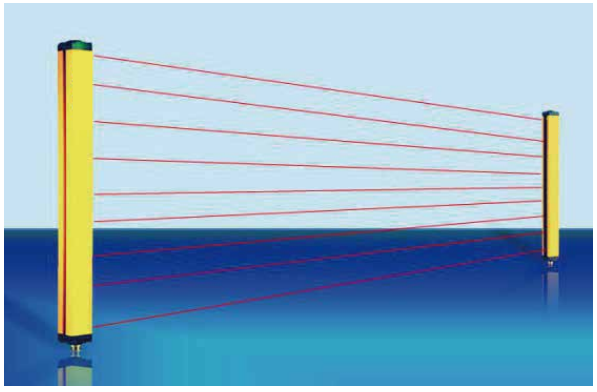

Light curtain infrared receiving ability is stronger, the light deviation of 5 degrees angle can be easily on the signal, the farthest distance between the transmitter and receiver can be up to 30 meters.

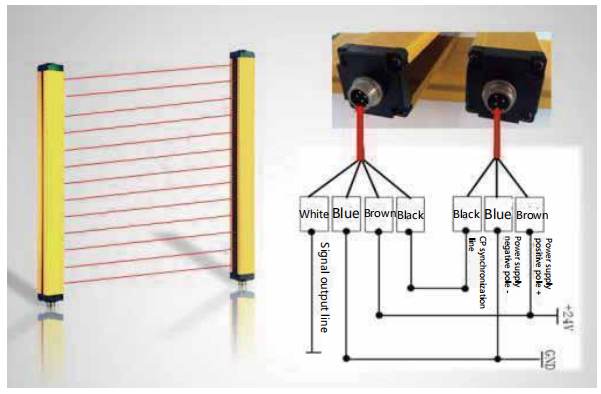

Simple wiring

Light curtain using the latest technology phase pulse technology developed by the wiring has been simplified wiring complexity, but at the same time can achieve simple wiring, stable performance features.

Fast response time

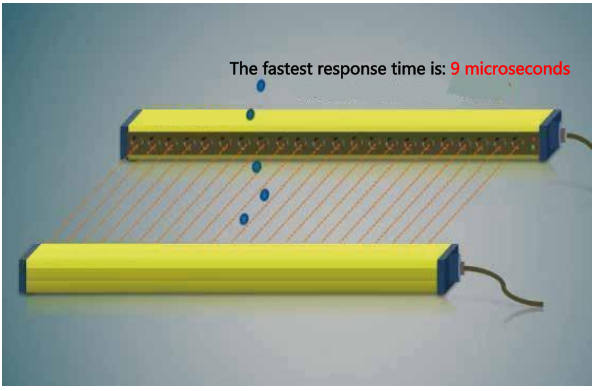

XAORI The first "fast" light curtain is not faster, but high-speed response, single-point response time of up to 9 microseconds, is currently one of the market's highest speed light curtain products, fast light curtains can effectively detect/measure high-speed movement of the object, highlighting the advantages of fast and reliable detection.

Waterproof up to IP69 rating

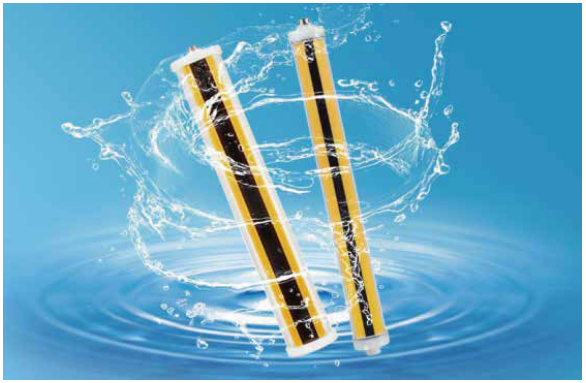

Waterproof light curtain protection grade IP69, through the market verification can be completely in the water depth of 3 meters or less stable work.

Non-standard customization

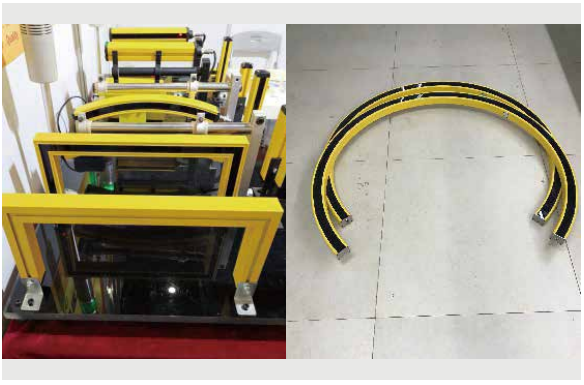

Non-standard customized light curtains / light curtains is one of the major advantages of my company, from the appearance of customized to the core customization has many years of experience, according to customer requirements have non-standard products: curved light curtains, T-type light curtains, V-type light curtains, round light curtains, and so on. Main applications: general ordinary light curtains can not be installed mechanical equipment.
